R7000Pro 5/3.2-meter high speed UV inkjet printer

Home > Product Center > Roll-to-roll machine > R7000Pro 5/3.2-meter high speed UV inkjet printer

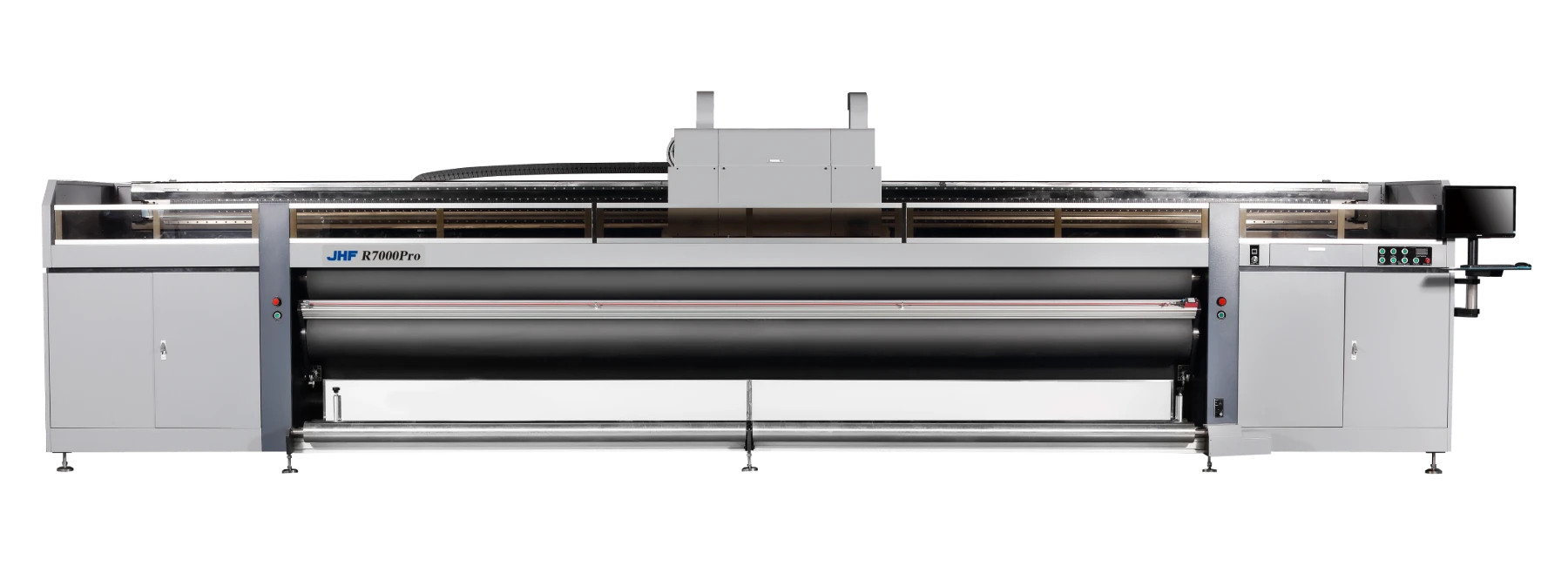

R7000Pro 5/3.2-meter high speed UV inkjet printer

JHF R7000Pro, super grand format UV printer, integrates experiences of hundreds ofhigh-end customers around the world during 10 years. With 1800 dpi printing resolution, its print-ing speed is 4 times faster than current market existing models. It offers an unrivalled combinationof speed and quality to give you a competitive advantage in the high-end graphics market. It isleading printer of HD lightbox and backlit film. JHF R7000Pro redefines the Industy'snew standreds and supports you to seize market chances.

Product features

Specifications

JHF R7000Pro roll-to-roll high-speed large-format industrial printer set a new benchmark for UV imagegraphics.
JHF R7000Pro high-speed large-format industrial printer gives efficient commercial display applications todigital printing suppliers, such as ultra-wide light box film, exhibition graphics, POS displays, commercial graphics andmore.
JHF R7000Pro could significantly extends your printing capacities and broaden the scope of business appli-cation, helping your business grow and seize the opportunity in the competition.

Reliable and humanized design, precise control capacity

High precision metal raster, high-performance linear motor, with sealed high-precision control tech contribute superiorprinting resolution. Highly-precise negative pressure system, cut down onwasted compressed ai over 90%, effectively extend servicetime of air compressor. With highly-precise vertical-position system, printheadcariage can be vaied automatically, reducing deviations anderrors caused by manual operations.
Using safe and reliable towline solutions ensures the move-ment of cable smoothly and stable. Unique sub-ink tanks control technology ensures the suddenblackout ink safety without leakage. Rectangular weded frame with inner triangle ensures highstrength and no deformation of printer body.

Multiple national patents

Unique LED lamp curing solution,more energy-saving andenvironmentally protection,the image s cured instantly,withhigher definition,brightness and color saturation.
National patented tensioning and feeding system,combined withsupe-large diameter rollers,ensures that each step is extremelyaccurate.
National patent roller structure provides a solid foundation forsmooth feeding of the whole machine.
National patent shocking appearance gives a solid and reliablespiritual experience.

Max Printing width	5000mm
Printhead model	Kyocera 6c*2
Printing speed	Express mode	300x1800dpi 600x1200dpi 600x1800dpi 1200x1200dpi	230/200 ㎡/h 180/150 ㎡/h 120/100 ㎡/h 95/80 ㎡/h
	Quality mode
	High Quality mode
	Ultra Quality mode
Substrates	Lightbox PVC, backlit PET film, fabric and soft signage material
Inks	UVink
lnk colors	C、M、Y、K、Lc、Lm、Ly、Lk
Controlling software	JHF Printer
Environmenta\| requirements	Temperature 18~28℃,Humidity30%~70%(non-condensing)
Air pressure parameters	≥8kg/c㎡
Connectivity	PCIE
Electrical power	3-phase,380AV/25KW
Machine Size	L8370mmW 2050mmH 2150mm /L 6620mmW 2000mmH 1940mm
Machine weight	6930KG/3800KG

Applications covering the entire industry

Indoor and outdoor light boxes, exhibition displays, car window decals, backlit signs, and commercial output, etc.
