R9000Pro Ultra-high quality industrial printer

Home > Product Center > Roll-to-roll machine > R9000Pro Ultra-high quality industrial printer

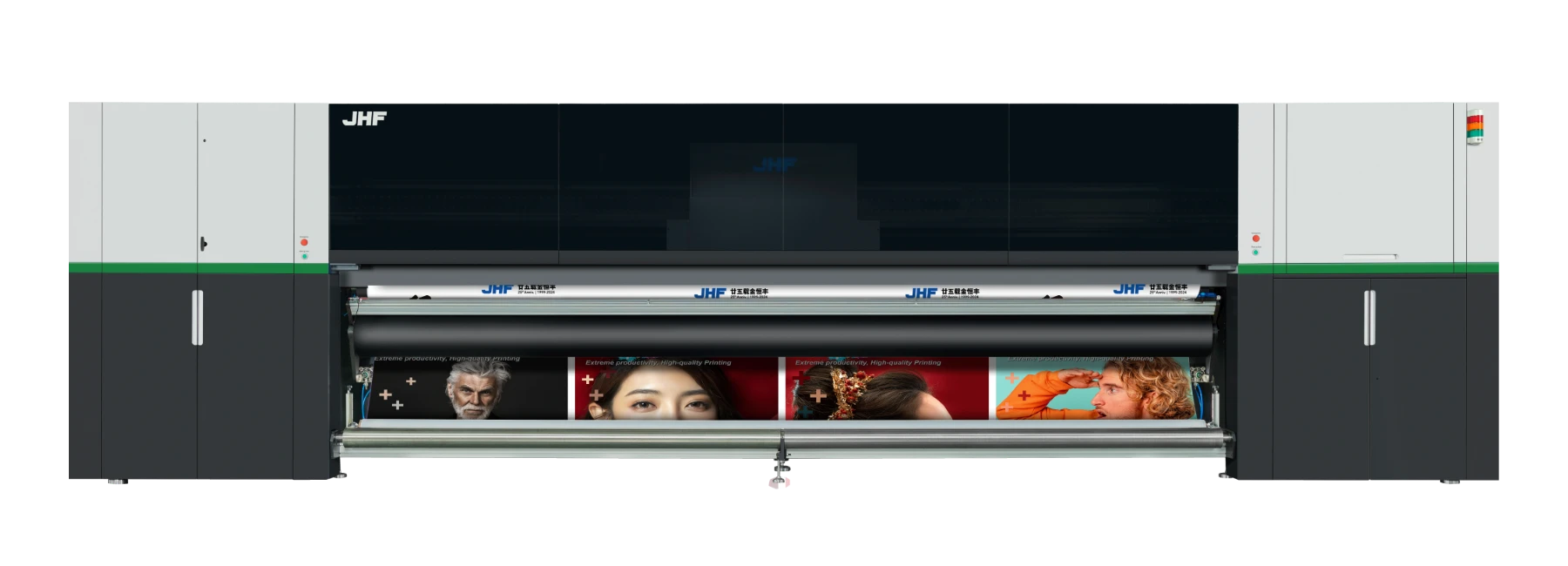

R9000Pro Ultra-high quality industrial printer

The R9000Pro independently developed by JHF is a new masterpiece in the field of industrial printing thatcombines ultra-wide format, high precision and intelligence. The 5-meter ultra-wide format and multi-roll print.ing realize efficient operation and burst out powerful productivity. The high-end quality and outstanding detailsgive you a new experience of the new integration of color, precision, efficiency and intelligence. R900oPro meetsthe needs in all aspects, provides customers with more excellent printing solutions, seizes market opportunitiesand helps you achieve the maximum business benefits.

Product features

Specifications

Super performance work

The fladble productlon mode con reallze the synchranous prindng of three rolls of 1.5mwide materialb,
The customized feeding system and the national patented roller structure make the printing materials run mor acurataty and smoothby, not easy to devlate, and more suitable for high-speed printing stability.
The ink temperature control system independently developed greatly improves the smoothness of ink and the printing stability.
The negative pressure platform managed by frequency conversion to ensure the stability of the negative pressure and effectivetly prevent the wrinkle of the feeding.

Ultra high output quality

5m wide format, double row eight color output system, all succeed in photo-realistic output.
0.5u high-precision metal encoder strip and maglev system perfectly ensures high printing accuracy during high-speed printing.
A variety of applications, offering full-color or color-white-color printing optional, with the ability to switch between them freely. By a highly efficient and fully automatic drying system and LED curing, the image can be printed and dried instantly and featured with waterproof, sunproof and scratch resistant, which is more energy-saving and environ- mental friendly, and has higher definition, brightness and color saturation.

Intelligent Module

R9000Pro is a highly intelligent industrial digital equipment with big potential for further system upgrading, effectively saving labor costs.
Double sided intelligent printing function, the printing position can be found more accurately by scanning through the camera.
Intelligent cutting function, which can synchronize to cut the picture vertically into 2-3 parts during the machine working.
Automatic boundary detective function, multi roll material can realize intelligent typesetting and synchronous printing to increase the production capacity of the machine.

Maximum printing width	5000mm
Print head	Kyocera
Head alignment	2 rows, 16/12 heads(8C2 /6C2)			2 rows, 16heads(24C)2
Printing mode	High speed mode	300X1800dpi	230 ㎡/h	600X1200dpi 320 ㎡/h 600X1800dpi 230 ㎡/h 1200X1200dpi 180 ㎡/h
	Production mode	600 X 1200dpi	180 ㎡/h
	Fine mode	600X1800dpi	120 ㎡/h
	Ultra fine mode	1200X1200dpi	95 ㎡/h
Media type	PVC banner,PET film,backit &frontlit fabric, PE film, mesh,etc.
Ink type	UVink
Ink color	C、M、Y、K、Lc、Lm、Ly、Lk、W
Control software	JHF Printer V5.0
Working environment	Temp.18-28C, RH 30-70%
Air pressure parameters	≥8kg/c ㎡
Connection interface	PCIE
Power requirements	3 phase,380V,25KW
Machine size	L 8520mmW 1900mmH 2200mm
Machine weight	8000KG

Applications covering the entire industry

Indoor and outdoor light boxes, exhibition displays, car window decals, backlit signs, and commercial output, etc.
