Venus 33x Industrial Hybrid UV Printer
Venus 33x is a ultra-high-end UV hybrid printer independently developed by JHF, which has the ability to print on both sheets and rolls of material using UV printing technology, with a printing width of 3.2 meters. The printer can simultaneously print on two rolls of 1.6 - meter, which can significantly improve production efficiency. The Venus 33x is equipped with an automatic media edge-finding function, which can accurately read the edge of single or multiple rolls of media and perform intelligent layout, making the printing process more efficient. Equipped with an intelligent sheet loading and unloading system, it can simultaneously print 6 sheets of material, enabling mutiple functions and saving industrial costs. The ink curing system adopts German-imported Honle mercury lamp, which is highly efficient, energy-saving, noise -reducing, and can improve curing efficiency. The Venus 33x ultra high-end UV hybrid printer will empower the industry with a more efficient production mode, helping customers unleash their production efficiency potential, and bring more commercial value.
Product features
Specifications

Flexible production mode

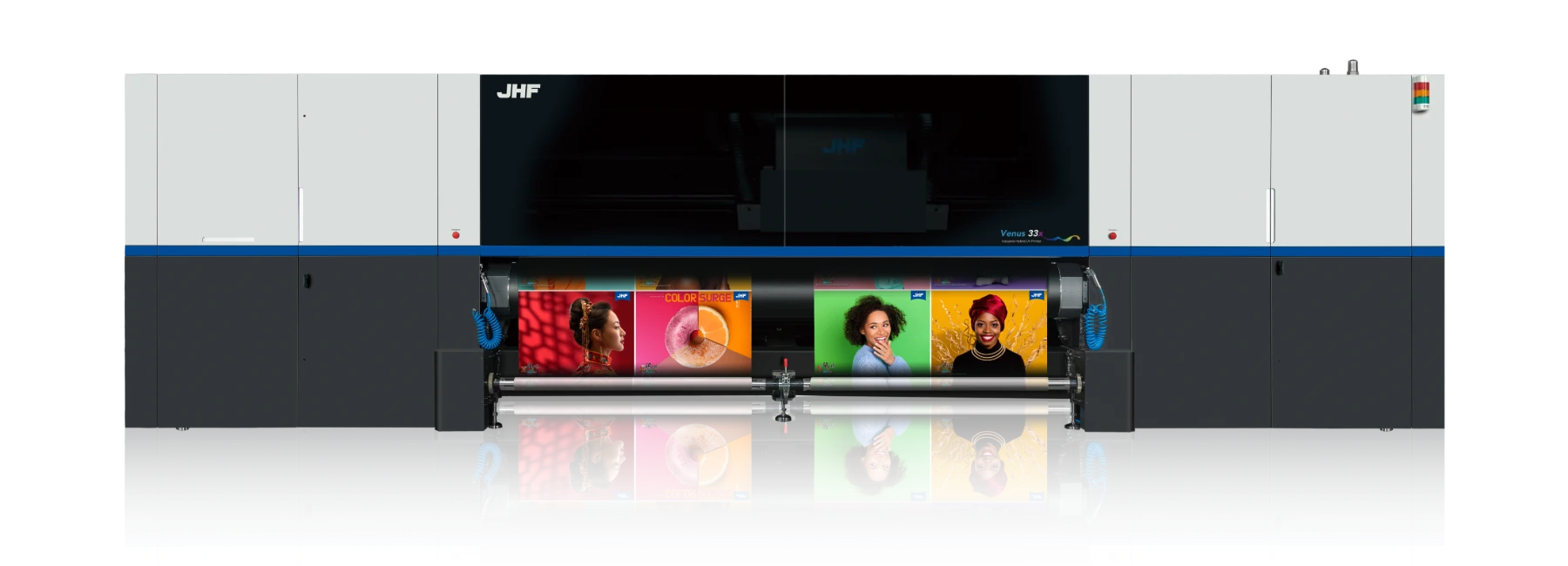

It can achieve simultaneous printing of two 1.6-meter medias. The independently developed differential inflatable shaft can simultaneously print two rolls of medias with different diameters, greatly

improving production efficiency.


Intelligent rigid sheets feeding system


During the sheets printing process, 4 rigid sheets can be printed simultaneously, achieving multi-purpose use with one machine and saving production costs.

33x (1).jpg


33x (2).jpg


Efficient ink curing system

Adopting German-made Honle mercury lamp, it is efficient, energy saving and noise-reducing, improving curing efficiency.


Ink constant temperature control system


Equipped with a sub ink tank and heating film, the card stably controls the temperature to ensure consistent ink properties in different environments.

Automatic media edge detection & intelligent layout of multiple rolls


The automatic media edge detection function saves time for calibrating the rigid sheet, and can quickly and accurately output the image; it can achieve intelligent layout and synchronized printing of multiple rolls, increasing machine productivity.


Electronic height measurement function


Automatically detects the thickness of the media, seamlessly switches printing mode according to the media, greatly improving the user experiffence.


Multi layer printing


The software's new feature supports simultaneous editing of 5 layers or more different colors, completing printing at once, making the operation process more convenient.

Hybrid Printer-venus 33x板卷混合机.jpg

Maximum printing width3200 mm
PrintheadKyocera 6C*4Standard configuration: 4C*4/(4C+2W)*4/(6C+2W)*4 /(4C+4C)*4
Printing modeHigh speed mode300X1800dpi
600X1200dpi
600X1800dpi
1200X1200dpi
350 ㎡/h
265 /h
180 /h
140 /h
Production mode
Fine mode
Ultra fine mode
Printing mediaFlexible media: 3P cloth, PEfilm, PVC banner, various textile fabrics and other flexible medias.
Rigid Sheets: corrugated board, PC board, acrylic board, glass, etc.
Printing thickness≤50mm
Ink typeUVink
Ink colorCMYK LcLm, Woptional
Environmental conditionsTemperature 18~28C, Humidity 30%~70%
Control softwareJHF Printer V5.0
Compressed air≥8kg/c㎡
Data transmission interfacePCIE
Power requirements380V/32KW
Machine sizeL8185mmxW2610mmxH2160mm
Machine weight9000kg


Applications covering the entire industry

Widely used in outdoor advertising, indoor advertising, light box advertising, posters, home decoration, exhibitions, decorative paintings, etc.
