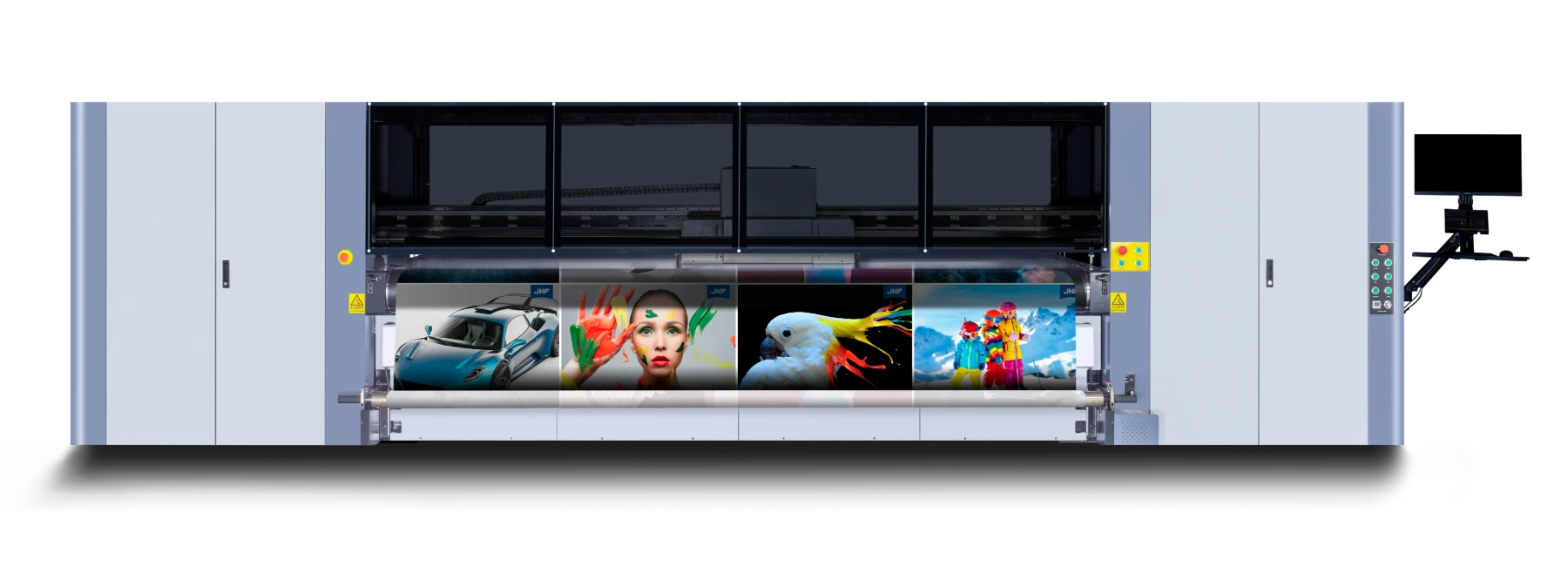

M3300 New Generation Hybrid UV printer
  • M3300 New Generation Hybrid UV printer
M3300 New Generation Hybrid UV printer
M3300 is a new generation of multi-functional hybrid printer featured with rigid and rolled UV printing. It is widely applicable to a variety of media and helps users develop a broader market. It's industrial printhead brings excellent accuracy and gorgeous colors, making the picture expressive beyond imagination. Towline solution can effectively reduce motion faults and have better stability. Automatic detection of media thickness greatly improved user's experience. The excellent performance and compatibility can help you greatly increase the instant production capacity, broaden the scope of business applications and stand out in the fierce market competition.
Product features
Specifications

Switchable feeding system

Air shaft safety clamp or double tube support for feeding. Easily switch, convenient feeding and printing without deviation.


LED lamp curing solution

Using LED cold light source can effectively reduce energy consumption, be more green and environmental protection, and help sustainable development.

M3300 (2).jpg


M3300 (1).jpg


Motion failure solution

Using safe and reliable towline solution to effectively prevent vibration and say goodbye to motion failure.


Ink Supply System

Stable sub ink tank temperature control system to ensure consistent ink properties in different environments. The whole machine adopts high-precision filter to ensure the quality of ink supply. A complete ink system is a powerful driving force to achieve stable and lasting output.


Stable adsorption

The platform adopts constant pressure control technology to ensure stable adsorption of materials and printing accuracy. The rigid printing adopts double pressing rollers and positioning device to make the positioning accurate.


Color Management Software

RIP sofware Caldera or PrintFactory adopted to support many mainstream applications, with simple and convenient operation interface.

img@1x (2).jpg

Printing width3200mm
PrintheadKM1024A-6pl/KM6988H-13pl 4C*4+2W 4C+4W+4WKyocera KJ4A (8C 2*8C 3*6C)
Printing speed
Thickness
(texture painting)

OneRowTwo RowsThree Rows
4PASS 726* 720 dpi 160㎡/h
6PASS 726* 1080 dpi 115㎡/h
8PASS726* 1440 dpi 85㎡/h
0.5mm 18㎡/h4 PASS 600* 1200 dpi80㎡/h150㎡/h
100㎡/h
80㎡/h
205㎡/h
145㎡/h
110㎡/h
1.0mm 12㎡/h6 PASS 600* 1800 dpi65㎡/h
1.5mm 8㎡/h8 PASS 1200* 1200 dpi45㎡/h
(the above mentioned speed is based on speed without smooth, radient effect)
SubstratesRigid media: glass, wood plate, ceramic tile, metal plate, acrylic board,PVC expansion sheet,crystal, marble, corrugated board.
Flexible media: flexible film, 3P cloth, fabric, wallpaper, leather, banner, reflective film, canvas and other flexible materials.
Printing thickness≤50mm
ColorC,M,Y,K,Lc,Lm,W
Optimum temperature18-28°C
Optimum humidity30%-70% RH
Data transmissionPCIE (for Kyocera head),USB (for Konica head)
Machine power11.5KW/19A
Input voltage380V/50/60Hz
Machine size6260mmx1770mmx1800mm
Machine weight2550kg


Applications covering the entire industry

Widely used in advertising, packaging, textiles, home furnishings, industry, art, construction, automotive, retail, and many other fields.
