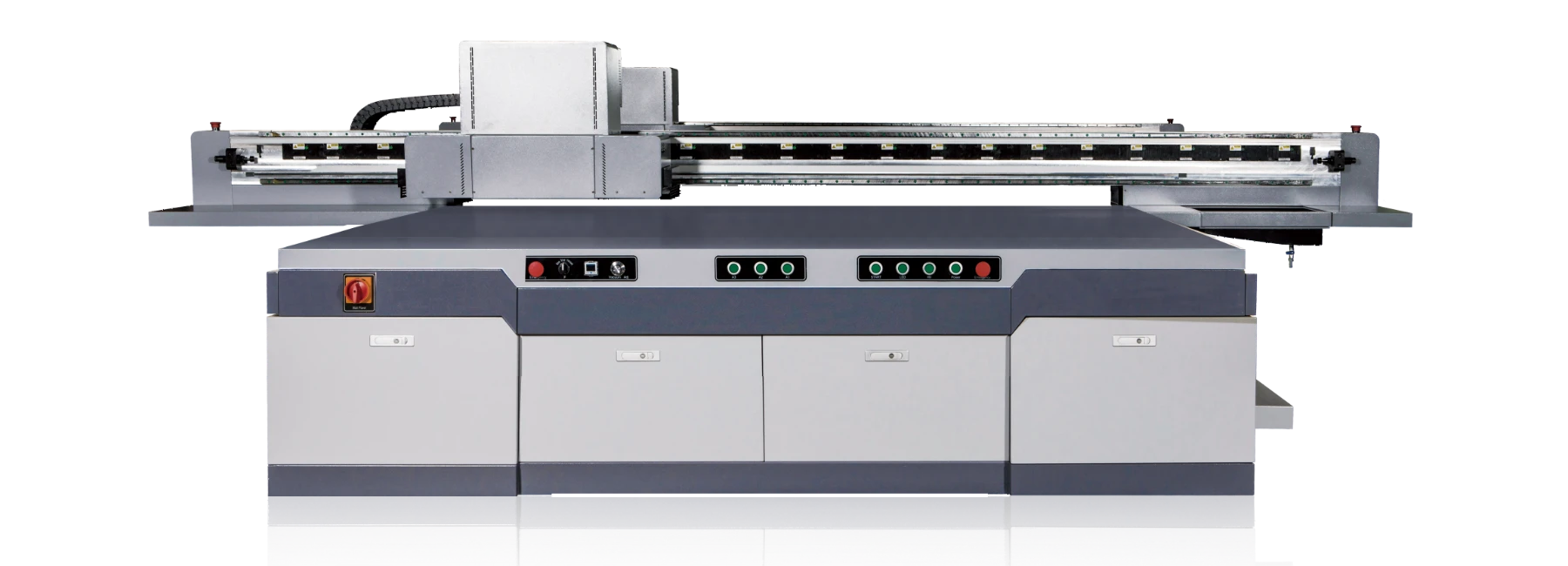

F3900 Super Wide Flatbed Industrial Printer
JHF released a super wide flatbed industrial printer with optional industrial-grade head, F3900. It delivers multiple layers printing with white or varnish. In addition, its variable ink droplet technology ensures that stunning images can be printed on a variety of media with high speed.
F3900 covers wide application fields, including sheet metal processing, architectural ceramics, decorative flooring, packaging paperboard and others. And it realizes the instant delivery of industrial production from customized design to terminal products.
Product features
Specifications

Multi Layers Printing


Multi-layers with white and varnish can be printed at the same time, right now we can support 5 layers printing.


Unique Sub-tank Controlling Technology

It prevents the ink leakage in case of sudden outage.





Auto Height Adjustment


Fully automatic carriage lifing system and customized motor ensure the precise positioning control of the whole platform, which meet printing demand of dierent heights at any point.

Anti-Collision Device


The carriage is equipped with anti-crash media detectors. When the sensor detects the obstructions on the vacuum table, the printer will stop the carriage emergently to prevent damage to the heads and protect personal safety as well.



PrintheadKyocera (4C+W)*2 / Ricoh G6 /KM1024A-6pl/KM6988H-13pl (4C*3+2W)(optional)
InkUVInk
CuringLED UV Curing
Printing SpeedKyocera (4C+W)*2Ricoh G6 (4C1W+4C+1V)KM1024A-6pl/KM6988H-13pl(4C*3+2W)
600x1200 dpi
600x1800 dpi
1200x1200 dpi
125 ㎡/h720x600 dpi
720x900 dpi
720x1200 dpi
53 /h726x720 dpi105 /h
90 /h42 /h726x1080 dpi80 /h
65 /h34 /h726x1440 dpi55 /h
(the above mentioned speed is based on speed without smooth, radient effect)
Printing MediaFoam board, Acrylic, Aluminum composite panel, Glass, Wood board and other rigid materials.
Printing Size2500x1300mm
Printing Thickness60mm (120mm optional)
Max Bearing Weight50 kg/ (uniform loading)
InterfacePCIE/Ethernet interface/USB
Carriage DrivenLinear-driven printhead carriage
Rip SoftwarePrintFactory/Caldera (optional)
PowerThree phase, 380V,11.5KW
Working Environment18-28C,30-70%RH
Air Pressure≥8kg/c
Machine Size4560mmx2090mmx1390mm
Machine Weight1350kg


Applications covering the entire industry

It can perform on rigid media such as corrugated board, PVC, light box sheet, wood board, glass, ceramic tile, metal board, acrylic, etc.
