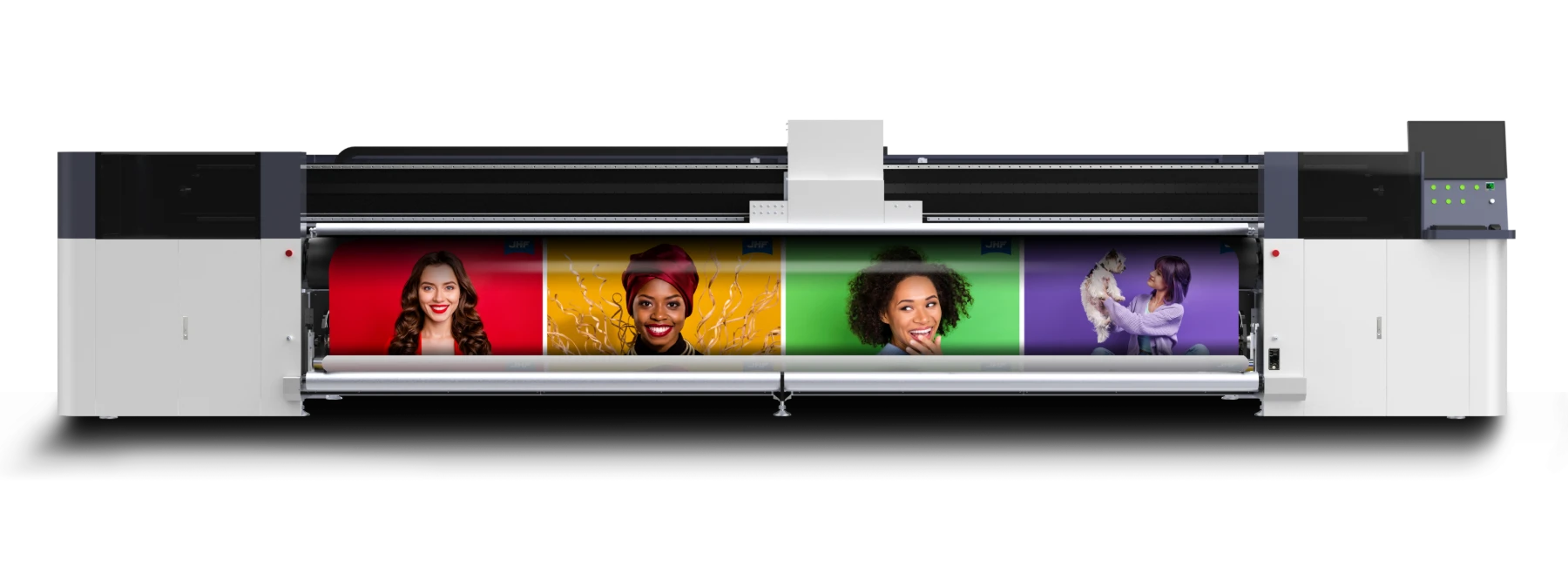

M5300 Novel Ultra-wide Hybrid Printer
M5300 is a brand new ultra wide hybrid printer independently developed by JHF with super roll to roll UV printing function. It is widely applicable to a variety of media to realize the output of multi scene printing solutions. M5300 is equipped with industrial heads to achieve high-speed output while bringing excellent printing accuracy and outstanding color expression. Wide format 5m and multi-rolls printing kit can eectively improves production efficiency and easily cope with various application scenarios, all in one design to save the cost. The front and rear double roll loading and taking up system makes it easier to load materials and make the working process simpler and more efficient. Its electronic negative pressure system with towline solution can effectively avoid motion faults, achieve high-precision control, and have better stability. The super performance and excellent compatibility of M5300 empower competitiveness and open a new horizon of UV hybrid printing.
Product features
Specifications

Flexible production mode


with super roll to roll UV printing function, its flexible production mode can realize the simultaneous printing of three rolls of 1.5-meter-wide materials, improve production efficiency and save costs.


Intelligent multi-function carriage control


Anti-collision system avoids the damage of the heads due to accidental factors. Electrostatic rod effectively remove the static electricity on the surface of the material and improve the printing quality of the product.

m5300 (3).jpg


img@1x (1).jpg

Ultra stable performance


Metal grating + linear motor to ensure high-speed and stable operation of carriage; double guide rail + towline solution to ensure the stability of long-term operation.


Stable adsorption


The platform adopts constant pressure control technology to ensure stable adsorption of materials and printing accuracy.

Intelligent ink supply system


Stable sub ink tank temperature control system to ensure consistent ink properties in different environments. The whole machine adopts high-precision filter to ensure the quality of ink supply. A complete ink system is a powerful driving force to achieve stable and lasting output.


Color management software


RIP software Caldera or PrintFactory adopted to support many mainstream applications, with simple and convenient operation interface.

m5300 (2).jpg


Printing width5000mm
Print headKM1024A-6pl/KM6988H-13pl
Quantity of heads6C*6
Printing speedHigh speed mode326X1080dpi
726X720dpi
726X1080dpi
726X1440dpi
400/h
310/h
210/h
165/h
Production mode
Fine mode
Ultra fine mode
(the above mentioned speed is based on speed without smooth, radient effect)
SubstratesFlexiblefilm, 3P cloth, fabric, wallpaper, leather, banner, reflective film, canvas etc.
X-direction carriage d rivenLinear motor (Maglev)
Curing methodWater-cooling LED UVlamp
Inktank5L
Image formatTIFF, JPEG, POSTSCRIPT, EPS,PDF
ColorC,M,Y,K,Lc,Lm,W
Temperature18-28°C
Humidity40%-60%
ConnectivityUSB
Machine power12KW/380V
Input voltage380V/50/60Hz
Machine sizeL8050mmxW2170mmxH1840mm
Machine weight5500kg


Applications covering the entire industry

Extensive outdoor large-scale advertising, indoor advertising, lightbox advertising, poster displays, home decoration, ceramic tile decorative paintings.
