M2000 All-new generation integrated flatbed printer
  • M2000 All-new generation integrated flatbed printer
M2000 All-new generation integrated flatbed printer

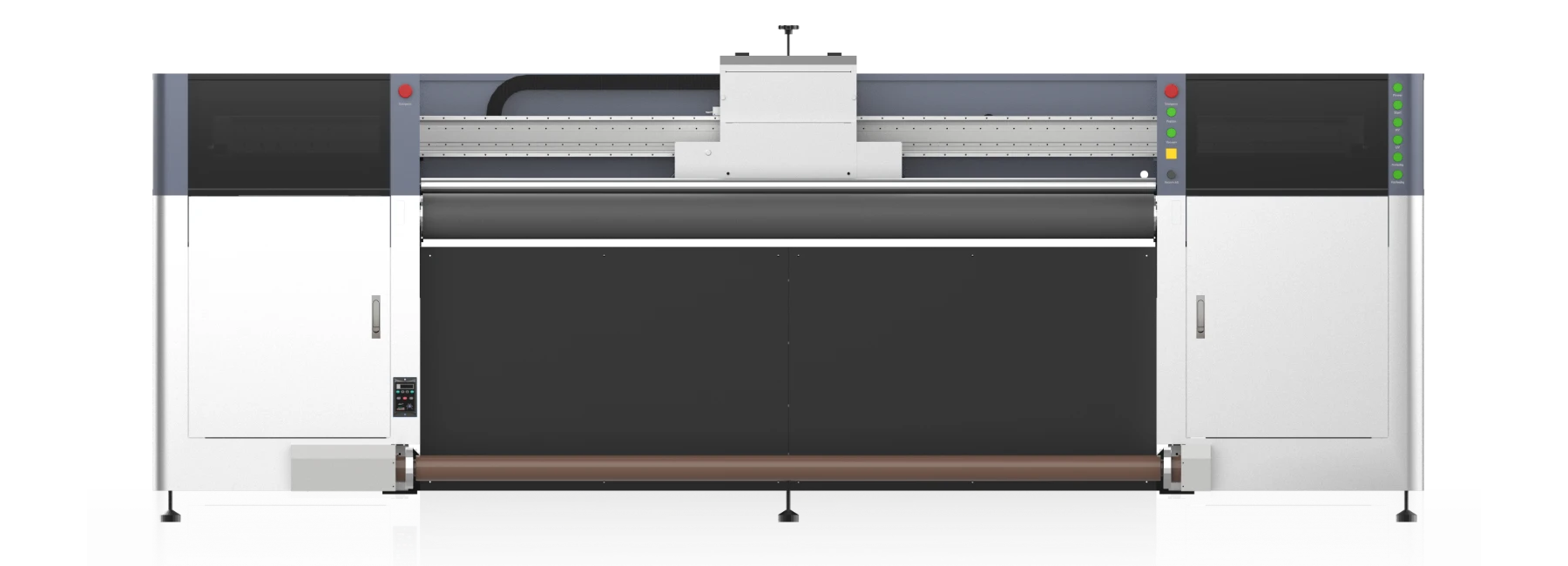

M2000 is an integrated flatbed printer independently developed by JHF, with a printing width of up to 2 meters. It combines the functions of flatbed and roll-to-roll UV printing, widely applicable to various media, providing printing solutions for multiple fields. M2000 is equipped with industrial-grade printheads, delivering exceptional printing precision and stunning color effects, while achieving high-speed and stable output, making the images more expressive. Its drag chain solution effectively reduces motion failures, ensuring a more stable printing process. The excellent performance of M2000 will help customers establish high-quality standards in the low-cost printing output market and expand broader business opportunities.
Product features
Specifications

Adsorption Stability

The platform adopts constant pressure control technology to ensure stable material adsorption and guarantee printing precision.


Color Management Software

Caldera/Print Factory and other RIP software are adopted, supporting numerous mainstream applications with a simple and convenient operation interface.


LED Curing Solution

LED cold light sources are used, effectively reducing energy consumption and being more environmentally friendly, contributing to sustainable development.



Hybrid Printer-M2000.png

Intelligent Ink Supply System


A stable secondary ink cartridge temperature control system ensures consistent ink performance in different environments. The whole machine adopts high-precision filters to ensure worry-free ink supply quality. A complete ink circuit system is the powerful driving force for achieving stable and durable output.

High-Speed Printing Core


The X-axis adopts high-precision metal grating rulers and linear motors to ensure high-speed and stable movement of the nozzle. Air-floating shafts and mechanical safety heads are used to prevent material deviation.


Ultra-High Stability Performance


Metal grating rulers + linear motors ensure smooth high-speed operation of the carriage; at the same time, the dual-guide rail + drag chain solution is adopted to ensure long-term operational stability.



Printing width2000mm
Nozzle modelKonica

Two rows, six colorsThree rows, four colors
Printing mode

4PASS    720*720 dpi

6PASS  720*1080 dpi

8PASS  720*1440 dpi
80/h
60/h
45/h
120/h
90/h
65/h
Printing materialHard substrates: Glass, wood, ceramic tiles, metal sheets, acrylic sheets, snowflake sheets, crystal, marble, corrugated cardboard.
Flexible materials: Soft film, 3P cloth, fabric, wallpaper, leather, advertising cloth, reflective film, oil painting cloth and other flexible materials.
Material thickness≤40mm
ColorC, M, Y, K, Lc, Ly, W
Suitable temperature18-28 degrees
Suitable humidity30%-70%
Data interfacePCIE
Machine power6.5KW/13A
Input voltage380V/50/60Hz
Machine dimensions3650mmx1200mmx1430mm
Machine weight800kg


Applications covering the entire industry

Corporate image display, home decoration, high-end coffee shop signage, light box advertising, badges, display boards, acrylic decorative paintings, etc.

Materials: Soft film, 3P cloth, fabric, wallpaper, leather, advertising cloth, reflective film, oil painting cloth and other flexible materials; board materials such as glass, wood, ceramic tiles, metal sheets, acrylic sheets, snowflake sheets, crystal, marble, corrugated cardboard.
