Versatile and productive

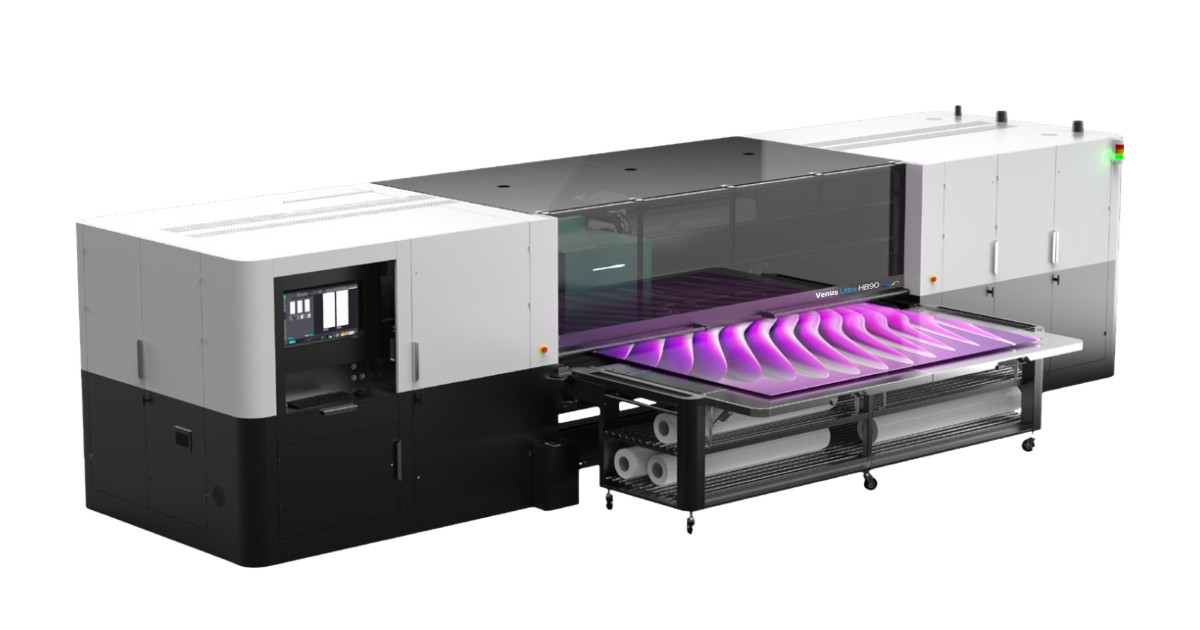

With its patented table latching system to allow easy switching from rigid to roll media, a user-friendly GUI and separated operational and maintenance areas of the machine to simplify operation. Users can change easily and within minutes, between roll and rigid media jobs, and the printer also features a ‘quick run’ option, with a small roll function integrated into the bed, allowing short roll jobs to be carried out on the fly.The Venus Ultra HB90 is a high-end printer designed for rigid and flexible media up to 3.3m in width. The printer boasts impressive printing speeds, capable of producing over 600m² per hour or 100 boards per hour.
Outstanding quality and colour accuracy
With a 3.3m print width, the Venus Ultra HB90 is equipped with up to 32 robust long-life Kyocera printheads, each delivering a 3.5pl drop size and more than 10,000 nozzles per colour. The CMYK+LcLmW ink configuration ensures outstanding colour accuracy and vibrancy across different applications.
Manual, half and full automation
To support high volume production, the Venus Ultra HB90 can be seamlessly integrated with a comprehensive new automation system. This system is designed for the automatic handling of rigid materials, allowing one single operator to run the machine for a full pallet-to-pallet process.The robust design of the automation system not only speeds up production, but also has the option of using either half or full automation. The system has a four-lane process allowing four rows of material to be printed simultaneously.
Technical Highlights
Engineered with the operator in mind
• Operator area with viewing window - operational from both sides
• Industrial PC built in to control the complete system
• Access roll-to-roll functionality with access through door on each side of the system
Industrial standard
• Rear ionizer system and two on each side of print carriage for static removal on difficult to use materials
• Media belt with seven adjustable vacuum zones for ultimate versatility
• Concentrated vacuum zones

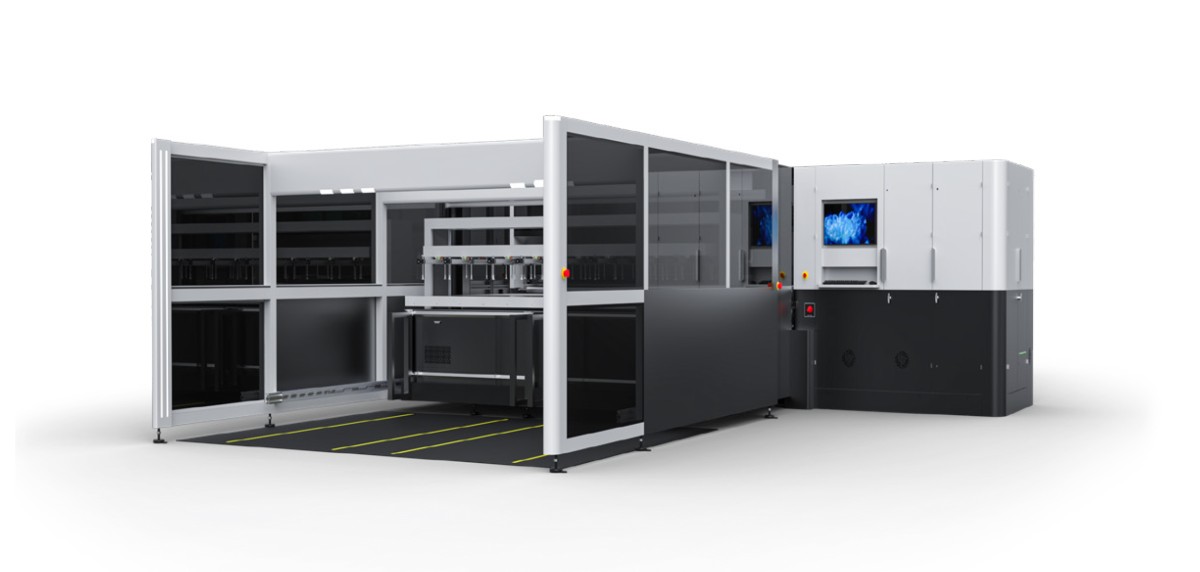

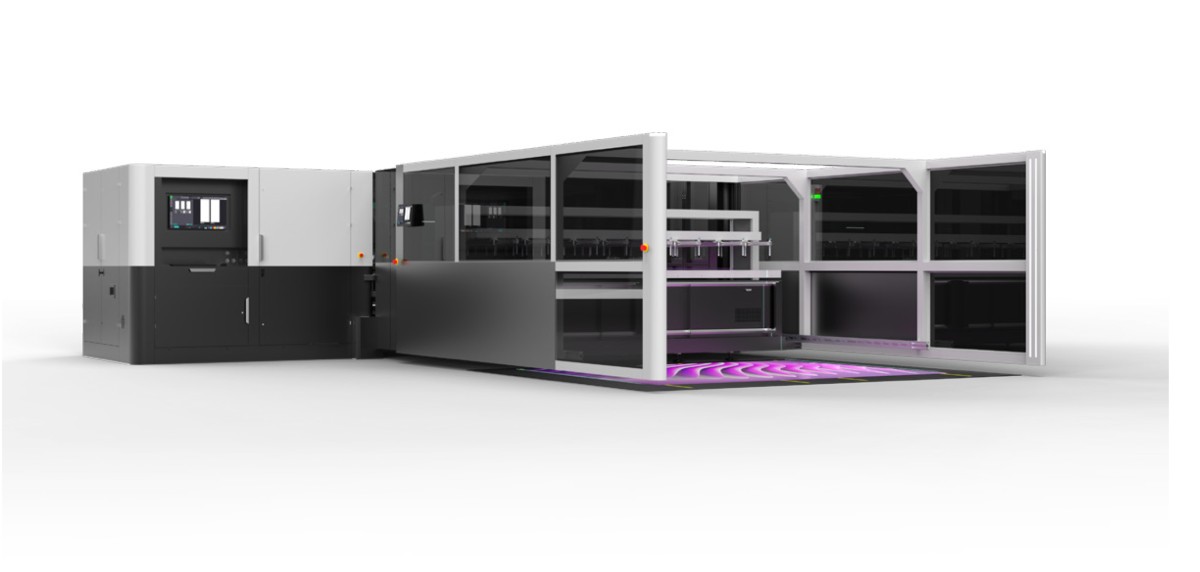

Loading and unloading system
• Four gripper handling system to allow the printing of four sheets at same time. Fifth optional
• Loading and unloading system couples to the printer using latching system
• 4 lane system can feed 4 sheets at the same time
• 2 arms with vacuum sucker cups per lane
• Adjustable vacuum system for different thickness and weights of media
• Pre-set media selection with laser alignment system for media placement
• Optional ionizer system for static removal on difficult to use materials – (Polyester/PP)
• Move media from pallet to printer in 34 seconds
• Light curtain at the entry and media feed for health and safety benefits
• Single power chain inside contains all air and power lines for system
Applications covering the entire industry
Indoor and outdoor light boxes, exhibition displays, car window decals, backlit signs, and commercial output, etc.
