LX680 Legend Printer
The LX680 is a legend printer suitable for industrial production, equipped with an independently developed printing control system. It adopts a dual-platform interactive printing method, incorporating a user-friendly design philosophy and relying on industrial production needs to introduce a new PCB character printing mode.

Product features
Specifications

Stable Performance

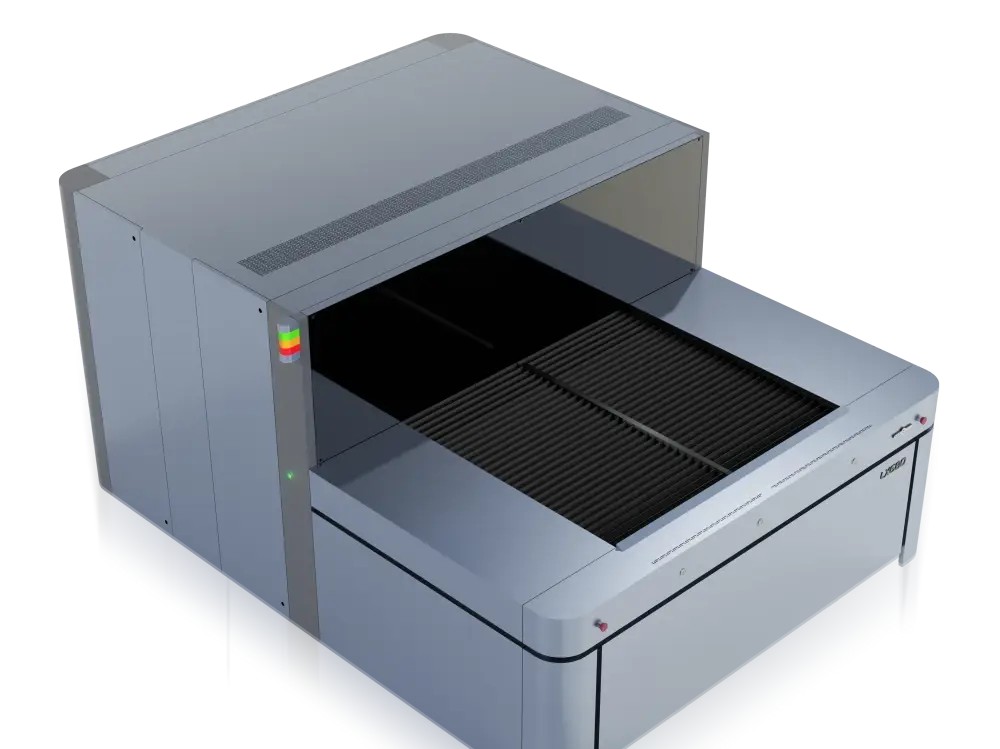

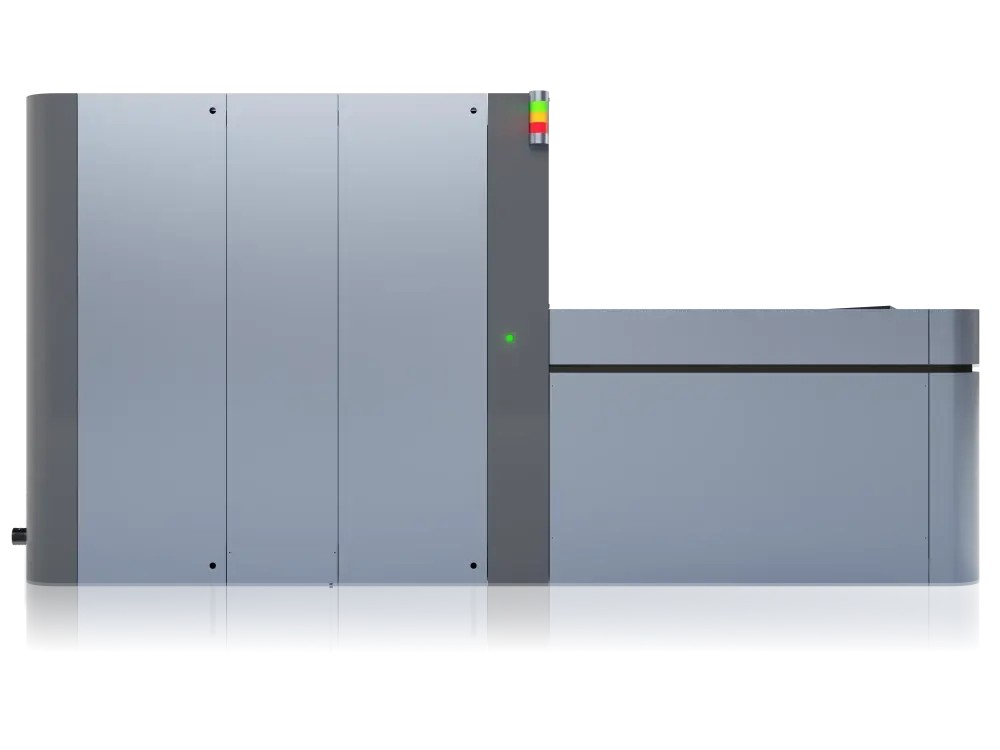

Utilizing high-quality linear motors and an industrial-grade PLC centralized control system, the machine is stably controlled, resulting in higher printing accuracy and more stable performance.

1785922376943560596353257472.webp@!w400


1785922376943560597594771456.webp@!w400


Intelligent printhead Maintenance


Automated printhead cleaning and maintenance design, automatically completing printhead maintenance and cleaning functions. The structure is compact, and the non-contact printhead cleaning does not damage the printhead, leaving no ink residue at the bottom of the printhead.

Precision Alignment

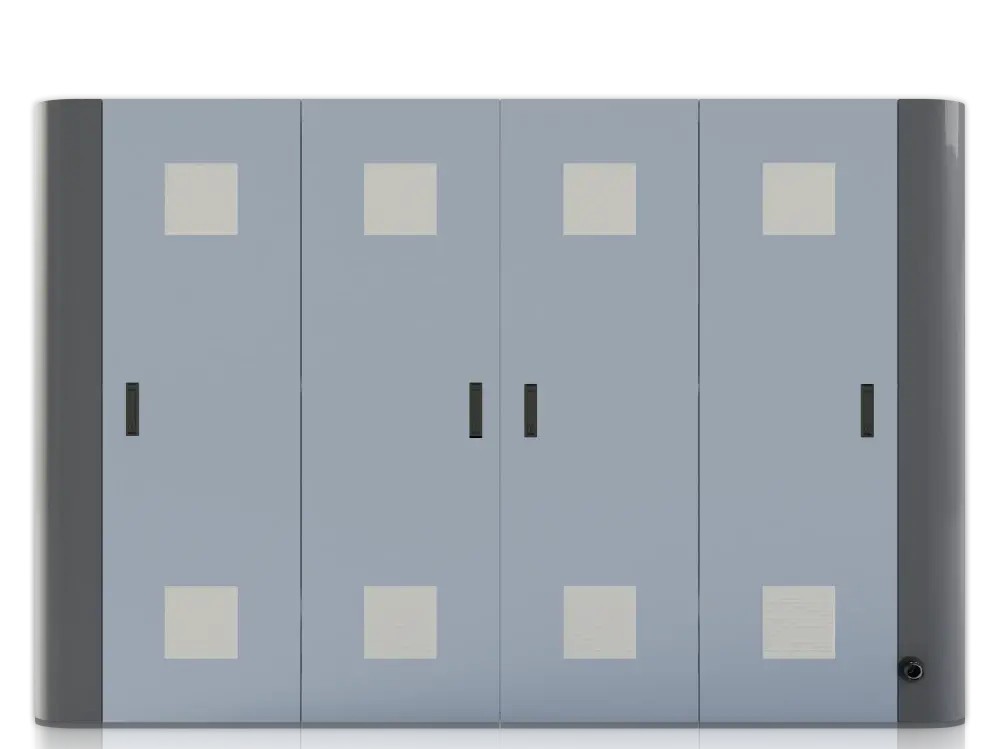

CCD automatic alignment, with a high-precision camera combined with independently developed alignment software, enables accurate image alignment.

1785922377943560598966308864.webp@!w400


Product ModelLX680
Printing board surface600mm x 470mm —680mm x 1250mm
Nozzle configuration4 piezoelectric high-precision nozzles (2-4 optional), 13PL
Printing mode

600mm x 470mm Standard Mode (2-pass): 100 faces/hour Fine Mode(3-pass): 80 faces/hour Ultra-fine Mode (4-pass): 60 faces/hour 680mm x 1250mm Standard Mode (2-pass): 70 faces/hour Fine Mode

(3-pass): 50 faces/hour Ultra-fine Mode (4-pass): 30 faces/hour

Ink typeUV ink
Ink colorWhite or black (optional)
Thinnest/thickest board surface0.1mm-8mm
Thickest plate surface (without clamps)25mm
Maximum printing resolution1440dpi x 1440dpi
Minimum line widthmin (75µm) (based on good solder resist tension)
Minimum text size500µm x 400µm (based on good solder resist tension)
Alignment precision±35µm
Depth of field of the plank0.5mm
AlignmentAutomatic CCD alignment (3-point or 4-point optional)
inkjet printing modeDraft/Standard/Fine AA/AB
Environmental requirementsTemperature 20~30℃, humidity 40%~70%
Compressed air6-8 atmospheres
Machine powerAC380, 50Hz, 25A, power supply voltage fluctuation range: ±7%
Machine size3545mm (L) × 2780mm (W) × 1800mm (H)
Machine weight6500kg


Applications covering the entire industry

Indoor and outdoor light boxes, exhibition displays, car window decals, backlit signs, and commercial output, etc.
