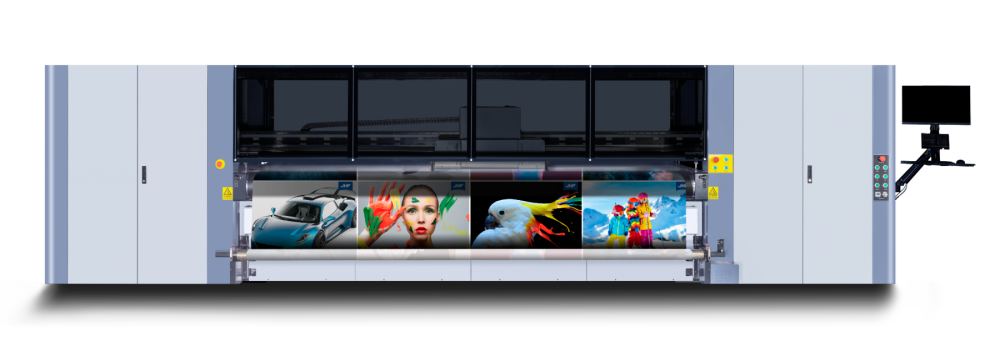

M3300 Multifunctional Hybrid UV Printer
M3300 is a new generation of multi-functional hybrid printer featured with rigid and rolled UV printing. It is widely applicable to a variety of media and helps users develop a broader market. It's industrial printhead brings excellent accuracy and gorgeous colors, making the picture expressive beyond imagination. Towline solution can effectively reduce motion faults and have better stability. Automatic detection of media thickness greatly improved user's experience. The excellent performance and compatibility can help you greatly increase the instant production capacity, broaden the scope of business applications and stand out in the fierce market competition.
Product features
Specifications

Switchable feeding system

Air shaft safety clamp or double tube support for feeding. Easily switch, convenient feeding and printing without deviation.


UV curing system

Using UV curing system can effectively reduce energy consumption, be more green and environmental protection, and help sustainable development.

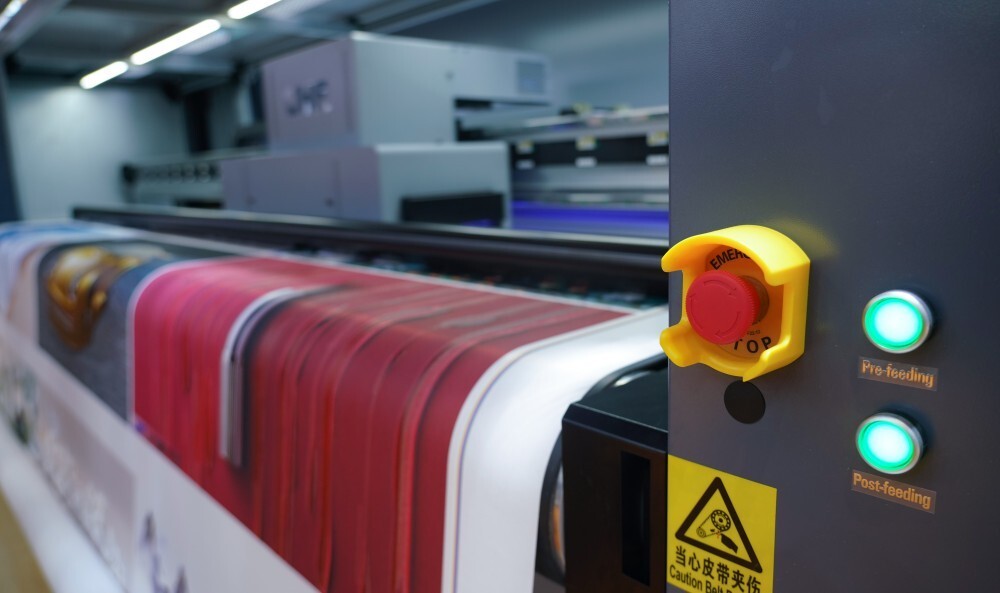

M3300 (2).jpg

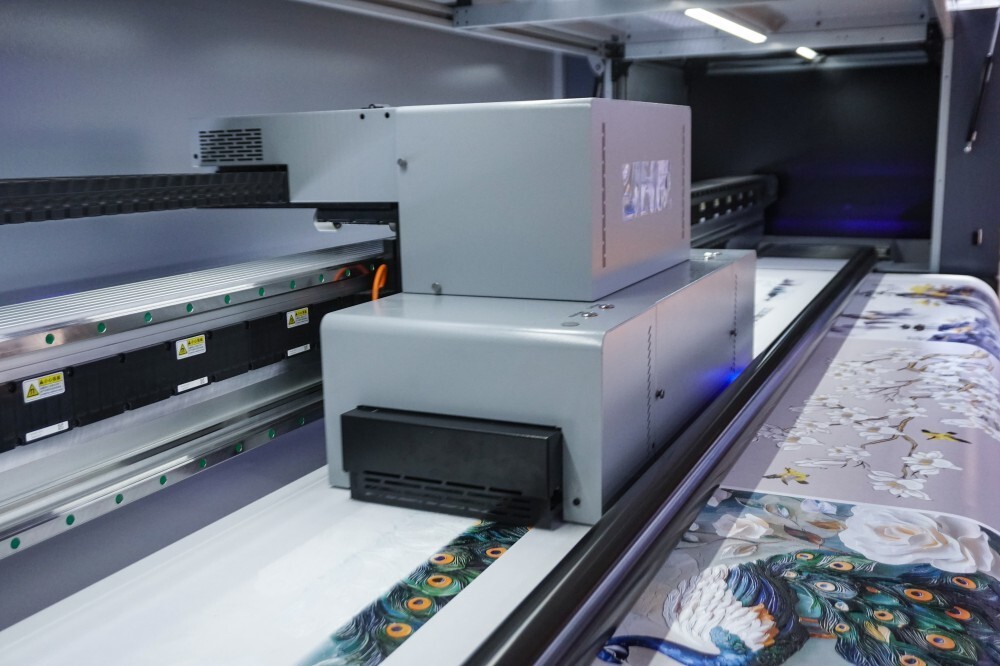

M3300 (1).jpg

Motion failure solution

Using safe and reliable towline solution to effectively prevent vibration.


Ink Supply System

Stable sub ink tank temperature control system to ensure consistent ink properties in different environments. The whole machine adopts high-precision filter to ensure the quality of ink supply. A complete ink system is a powerful driving force to achieve stable and lasting output.


Stable adsorption

The platform adopts constant pressure control technology to ensure stable adsorption of materials and printing accuracy. The printing adopts double pressing rollers and positioning device to make the positioning accurate.


Color Management Software

RIP sofware Caldera or PrintFactory adopted to support many mainstream applications, with simple and convenient operation interface.

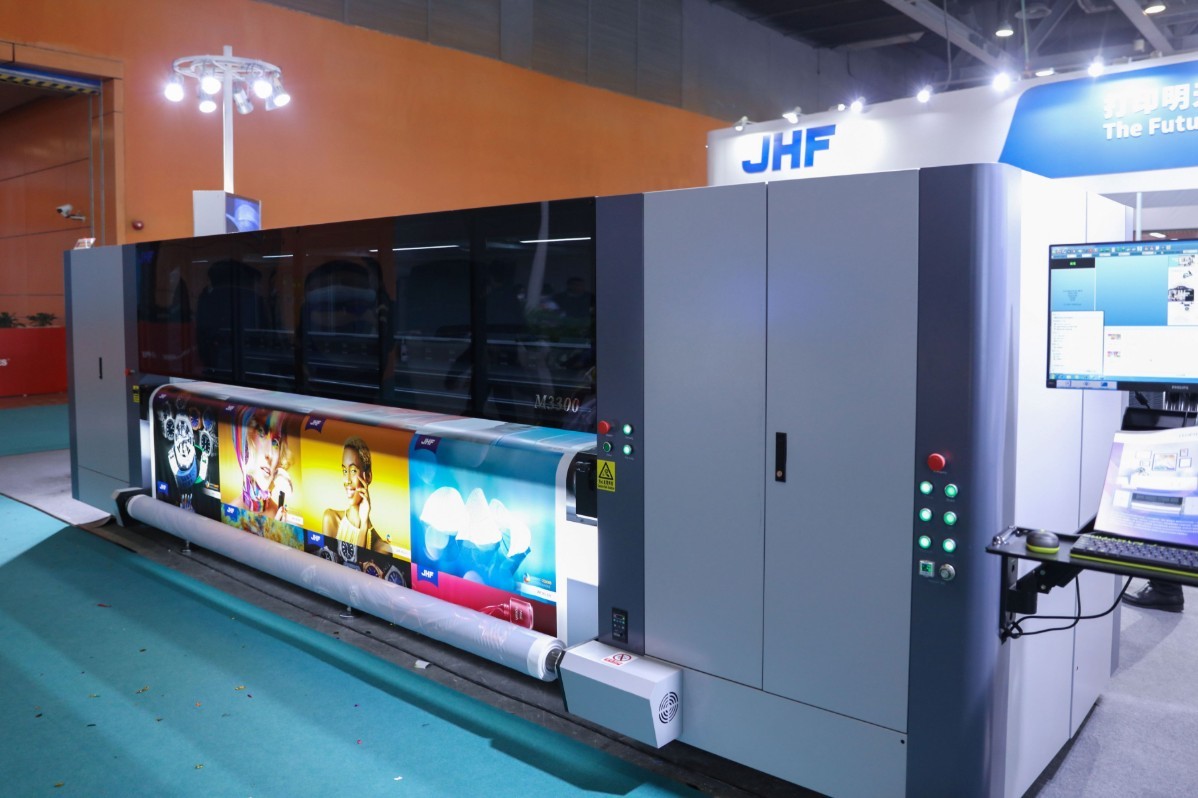

img@1x (2).jpg

Product ModelM3300
Maximum width3200mm
Printing mode

Kyocera: 3-row

High-speed mode 300×1800dpi 270m²/h

Production mode 600×1200dpi 215m²/h

Fine mode 600×1800dpi 155m²/h

Ultra-fine mode 1200×1200dpi 120m²/h

Kyocera: 2-row

High-speed mode 300×1800dpi 195m²/h

Production mode 600×1200dpi 155m²/h

Fine mode 600×1800dpi 110m²/h

Ultra-fine mode 1200×1200dpi 85m²/h

Konica:

High-speed mode 363×1080dpi 245m²/h;

Production mode 726×720dpi 200m²/h;

Fine mode 726×1080dpi 140m²/h;

Ultra-fine mode 726×1440dpi 110m²/h

Ink typeUV ink
Ink colorC, M, Y, K, Lc, Lm, W
Material thickness≤50mm
RIP softwarePrint Factory/Caldera (optional)
Control softwareJHF Printer
Environmental requirementsTemperature 18~28℃, humidity 30%~70%
Machine power supplyThree-phase 380V/11.5KW
Machine sizeLength 6300mm × Width 1750mm × Height 1720mm
Machine weight1950kg


Applications covering the entire industry

Widely used in advertising, packaging, textiles, home furnishings, industry, art, construction, automotive, retail, and many other fields.
