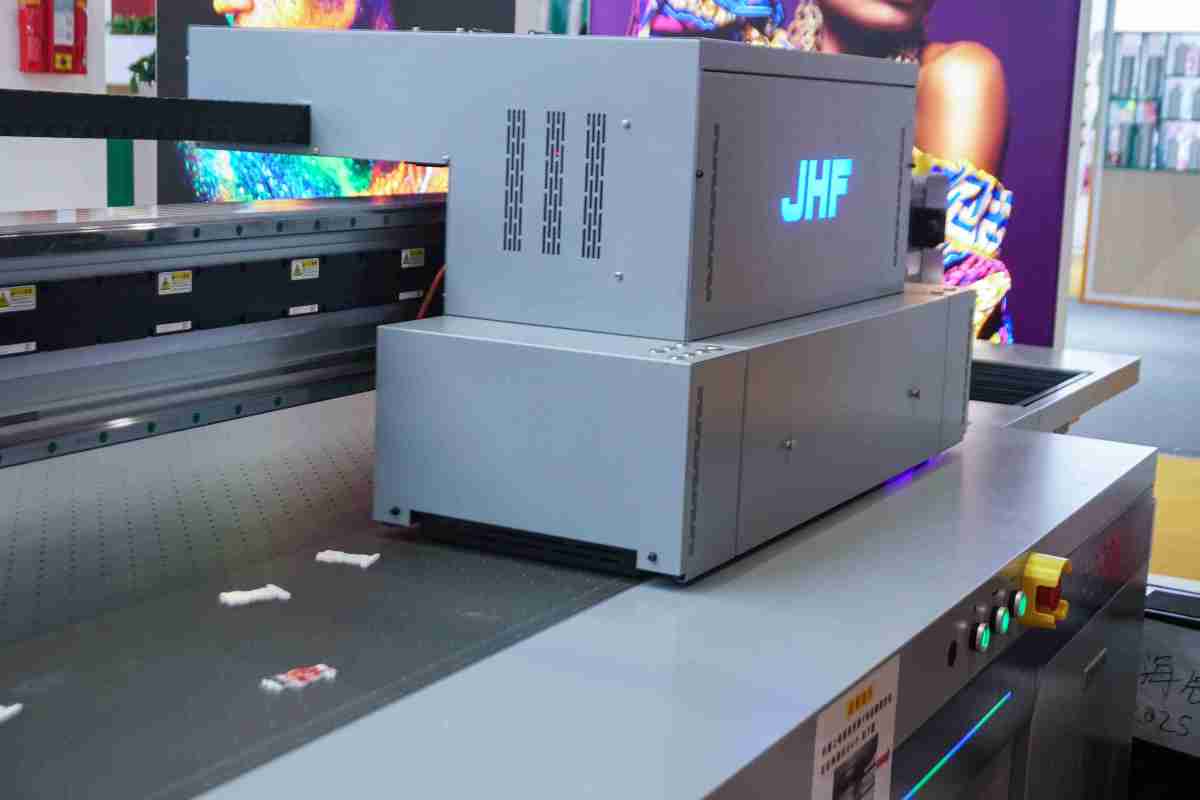

F3900 Ultra-Wide Flatbed Industrial Printer
JHF released a Ultra-Wide flatbed industrial printer with optional industrial-grade head, F3900. It delivers multiple layers printing with white or varnish. In addition, its variable ink droplet technology ensures that stunning images can be printed on a variety of media with high speed.
F3900 covers wide application fields, including sheet metal processing, architectural ceramics, decorative flooring, packaging paperboard and others. And it realizes the instant delivery of industrial production from customized design to terminal products.
Product features
Specifications

Multi Layers Printing


Multi-layers with white and varnish can be printed at the same time, right now we can support 8 layers printing.


Unique Sub-tank Controlling Technology

It prevents the ink leakage in case of sudden outage.





Auto Height Adjustment


Fully automatic carriage lifing system and customized motor ensure the precise positioning control of the whole platform, which meet printing demand of dierent heights at any point.

Anti-Collision Device


The carriage is equipped with anti-crash media detectors. When the sensor detects the obstructions on the vacuum table, the printer will stop the carriage emergently to prevent damage to the heads and protect personal safety as well.



Product ModelF3900
Maximum width2500mm x 1300mm
Printing mode

Ricoh:

 Production mode 720×600dpi 53m²/h;

Fine mode 720×900dpi 42m²/h;

Ultra-fine mode 720×1200dpi 34m²/h

Konica:

High-speed mode 363×1080dpi 175m²/h;

Production mode 726×720dpi 135m²/h;

Fine mode 726×1080dpi 95m²/h;

Ultra-fine mode 726×1440dpi 75m²/h

Kyocera:

High-speed mode 300×1800dpi 175㎡/h;

Production mode 600×1200dpi 135㎡/h;

Fine mode 600×1800dpi 95㎡/h;

Ultra-fine mode 1200×1200dpi 75㎡/h

Ink typeUV ink
Ink colorC,M,Y,K,Lc,Lm,W,V
Material thickness≤120mm
Platform load-bearing capacity50 kg/m² (uniformly distributed load)
RIP softwarePrint Factory/Caldera (optional)
Control softwareJHF Printer
Environmental requirementsTemperature 18~28℃, humidity 30%~70%
air pressure parameters≥8kg/cm²
Machine power supplyThree-phase 380V/11.5KW
Machine size4560mm (length) × 2090mm (width) × 1390mm (height)
Machine weight1350kg


Applications covering the entire industry

It can perform on rigid media such as corrugated board, PVC, light box sheet, wood board, glass, ceramic tile, metal board, acrylic, etc.
