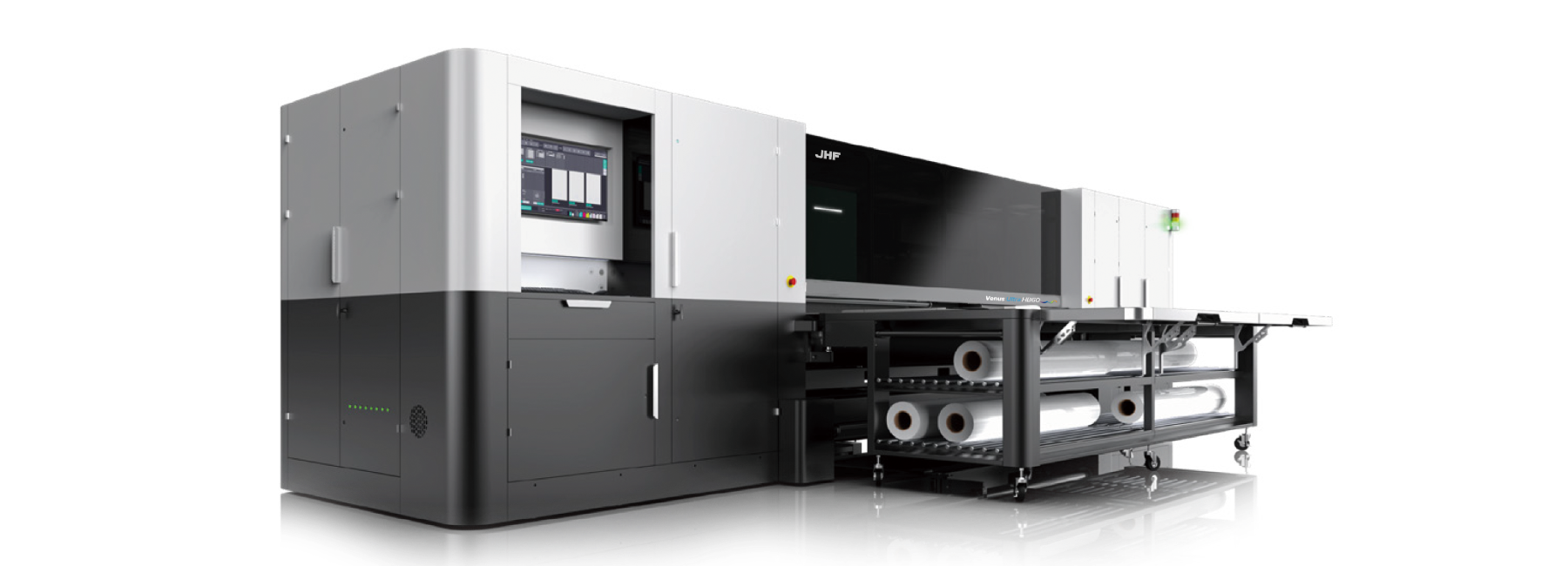

Venus Ultra HB60 High-Quality Hybrid Printer
  • Venus Ultra HB60 High-Quality Hybrid Printer
Product features
Specifications


Superb print quality


The Venus Ultra HB60 uses the same head carriage as the Venus Ultra R2,capable of ejecting greyscale drops down to 3.5pl in size to deliver superb print quality.


Scalable architecture


The ink set consists of six standard colours(CMYKLcLm) and an optional white ink. The printer can be configured with two white ink channels to maximise throughput speeds and print density.

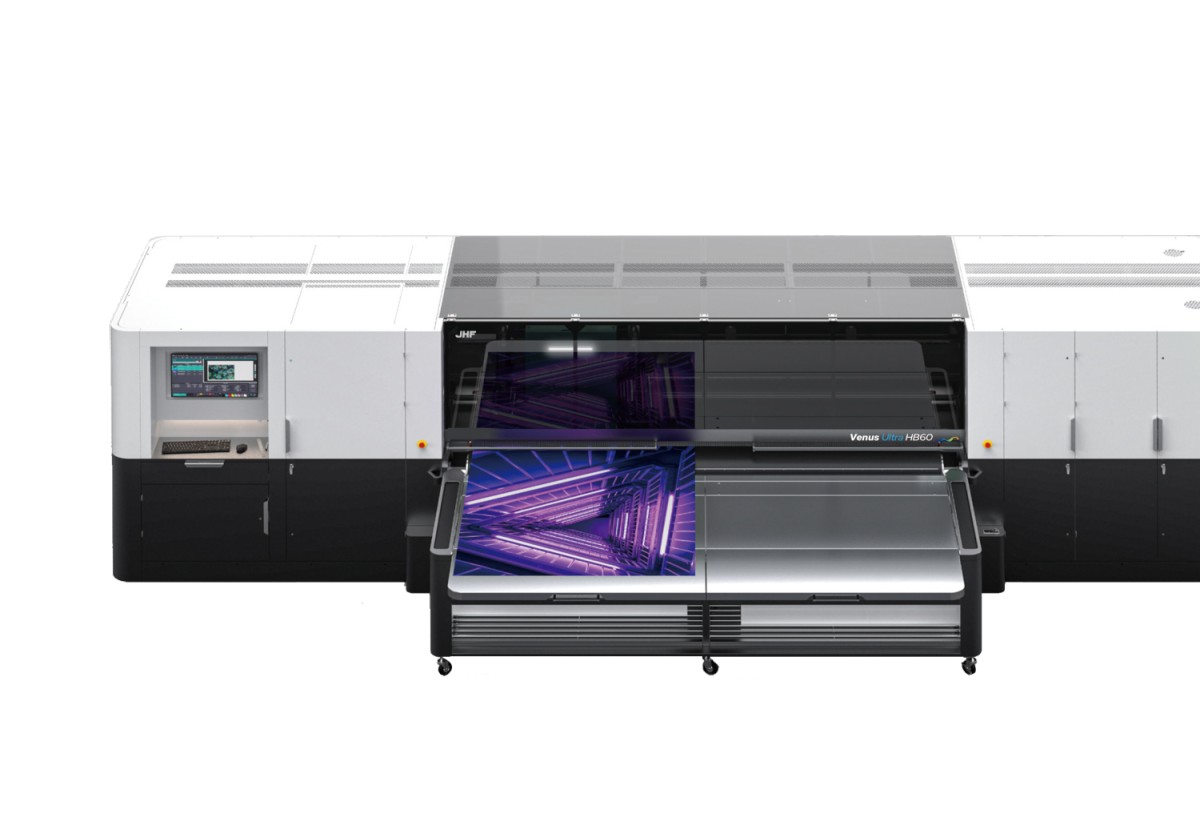

1788508944954409449392676864.png@!w400

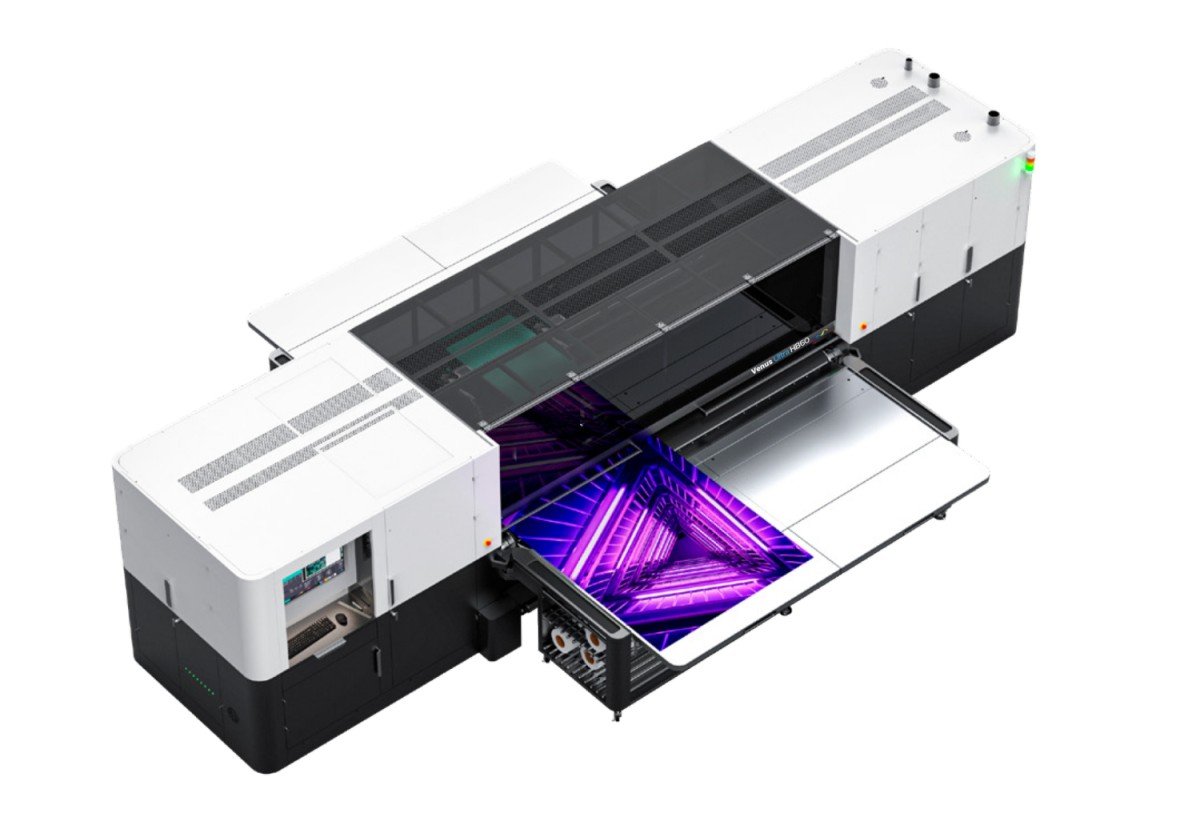

1788508945954409450940375040.png@!w400


Media load and unload tables


JHF's media table design features a dimpled table surface which supports all media types while allowing easy media positioning, providing performance superior to most other systems on the market. In addition, an innovative catch mechanism improves media feed accuracy, and provides protection from accidental damage throughout a print run.

Intelligent vacuum control system


The Venus Ultra HB60 features an intelligent vacuum control system that has been designed from the ground up using sophisticated airfow CAD modelling software to generate excellent media hold down.The system automatically turns on the vacuum zones needed for any print job based upon the media width, and automatically adjusts the vacuum control power to maintain a constant force under the belt regardless of media type and size. This ensures excellent media hold down, whilst maintaining consistent media transport, to ensure high print quality.

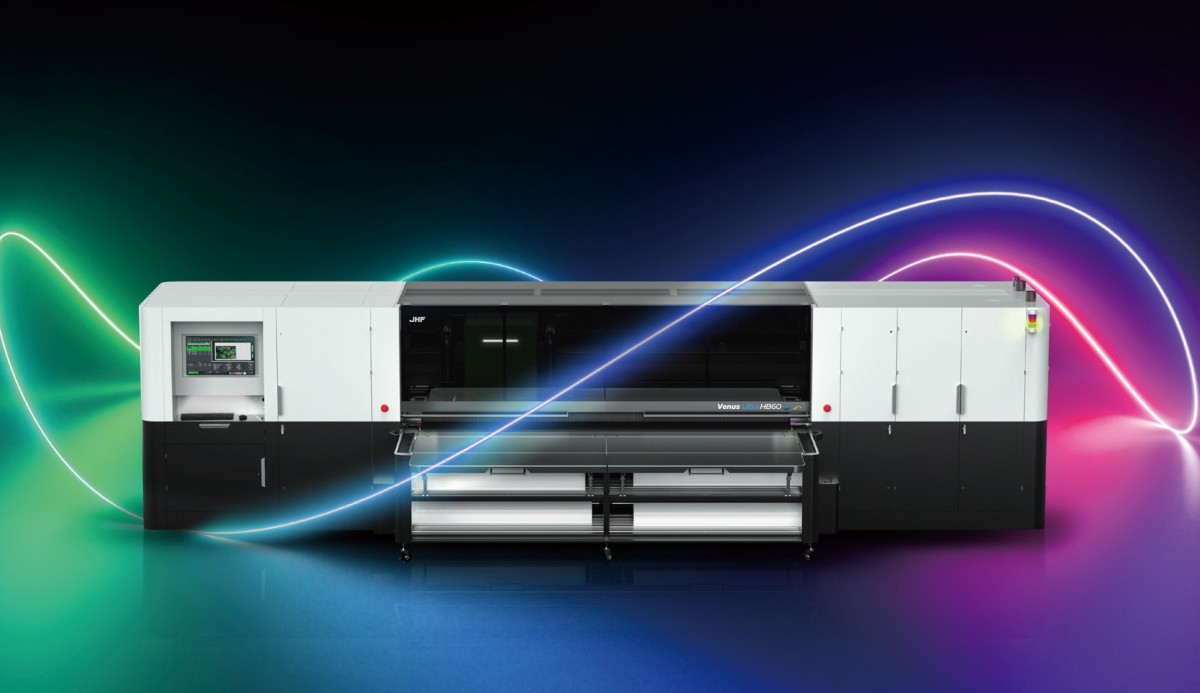

1788508945954409453108830208.jpg@!w400


Venus Ultra HB60Technical Parameters
Print sizesMaximum width 3.3 metre
Ink rangeCMYKLcLm – Optional white
Ink reservoirTop loading 7 ltr tanks , White 2 ltr
Print headUp to 16 Kyocera KJ4A heads
Number of nozzles10624 nozzles per colour channel with white channel having 21248
Print resolutionPrint resolution up to 1200 x 1200 dpi
Productivity315 m2/hr for RTR and up to 60 beds an hour
Curing systemLED Lamp – lamp life minimum 5000 hours
Power requirementsPrinter: 380-400V, 50/60 Hz, 3P+N+E, 20A, peak power 18kW*
Vacuum: 380-440V, 50/60 Hz, 3P+N+E, 35A, peak power 25 kW*
ConnectivityConnectivity Minimum 1000 base T
Air supplyPressure (minimum): 8 kg/cm² (7.85 bar / 114 psi)
Media Type – RTRUp to 2 mm – PC, PET, UV textiles, Papers, SAV, Mesh, banner PVC
Media Type – rigidUp to 5 cm – Foam PVC, Rigid PVC, Dibond, PE Flute, Acrylic, P&B
Media RTR – single roll180 kg x 36 cm diameter x 3.2 m width
Media RTR – dual rollEach – 90 kg x 36 cm diameter x 1.6 m width
Media RTR on table rollers20 kg max weight
Media capabilities rigidMax 15 kg/m² – Max single sheet weight on table 80 kg
Sheet sizesMinimum sheet size 50 x 70 cm. Max 3.2 m x 3 m (with table extensions)
Environment18-28° C. 40-80% RH (noncondensing) (Altitude 0-2000 m)
Dimensions L x W x H8300mm × 2100mm × 1900mm (With tables width 5500mm or 7500mm with table extensions)
Working area recommended10300mm × 9500mm
Weight8300kg
*These values represent maximum peak power - when starting up devices like the printer or vacuum, the power draw will spike initially before dropping to a lower level.


Technical Highlights

Heavy duty chassis

The Venus Ultra HB60 is built on a substantial welded steel construction, together with solid steel bars, which contribute to the machine’s 8.3T weight.

Linear motor head carriage drive

The Venus Ultra HB60 uses a linear motor drive for the head carriage delivering travel speeds of 1900 mm per second when using the fast carriage travel speed., travelling along dual rails with the carriage supported by 6 large race bearings.

White ink

The Venus Ultra HB60 with white ink allows flood white under-printing for non-white media, over-printing white for backlit applications on transparent media and/ or printing white as a spot colour. The printer is capable of printing up to 5 layers, with the 1st and 5th layer being a different image.

Designed with the operator in mind

A second workspace with keyboard and monitor that mirror the functions of the PC that drives the machine, meaning a single user can operate the printer from either the input or the output sides of the machine

Media tension buttons

Media tension buttons controlling the roll functions of the machine are located on both the input and output sides for ease of use

Input media roller

The input media roller is adjustable, moving up and down, for improved tension, and to help keep the roll media flat and wrinkle free

The durable aluminium media shafts cater for either single

3.3 m rolls, or two rolls each up to 1.6 m wide.

Special airshaft

uses a special airshaft which allows two rolls of the same media having different diameters to be run at the same time

Application

  • This means low cost Correx products for short term signage applications such as for sale signs and building hoardings, can be printed at high speed with multiple panels (up to 5 across the bed) continually printed with a single operator.
    Print on rigid media with ease
    This means low cost Correx products for short term signage applications such as for sale signs and building hoardings, can be printed at high speed with multiple panels (up to 5 across the bed) continually printed with a single operator.
  • In addition, the Venus Ultra HB60 can print onto Dibond and Acrylics, utilising multilayer printing and white for reverse printing, and two sided applications.
    Double up with multi-layer capability
    In addition, the Venus Ultra HB60 can print onto Dibond and Acrylics, utilising multilayer printing and white for reverse printing, and two sided applications.
  • The Venus Ultra HB60 can also print 2 x 1.6m rolls, even with different diameters, as the shafts have a differential in the middle meaning the rolls can spin at different speeds.All rolls are transported perfectly through the printer, producing high quality results on materials such as self-adhesive vinyl, pop up materials for roller banners, floor graphics and billboard paper all delivered at high speed.
    Two rolls at once
    The Venus Ultra HB60 can also print 2 x 1.6m rolls, even with different diameters, as the shafts have a differential in the middle meaning the rolls can spin at different speeds.All rolls are transported perfectly through the printer, producing high quality results on materials such as self-adhesive vinyl, pop up materials for roller banners, floor graphics and billboard paper all delivered at high speed.
  • For both rigid and roll, the Venus Ultra HB60 can also print white on a wide range of clear materials such as clear self-adhesive PVC, optically clear polyester and polypropylene – all high margin applications for retail applications.It also capable of printing on wall covering materials, either short rolls up to 1.6m with a textured finish, or on 3.2m seamless wallcoverings for business applications such as hotels and retail spaces.
    Highlights are a clear winner
    For both rigid and roll, the Venus Ultra HB60 can also print white on a wide range of clear materials such as clear self-adhesive PVC, optically clear polyester and polypropylene – all high margin applications for retail applications.It also capable of printing on wall covering materials, either short rolls up to 1.6m with a textured finish, or on 3.2m seamless wallcoverings for business applications such as hotels and retail spaces.

Applications covering the entire industry

Indoor and outdoor light boxes, exhibition displays, car window decals, backlit signs, and commercial output, etc.
