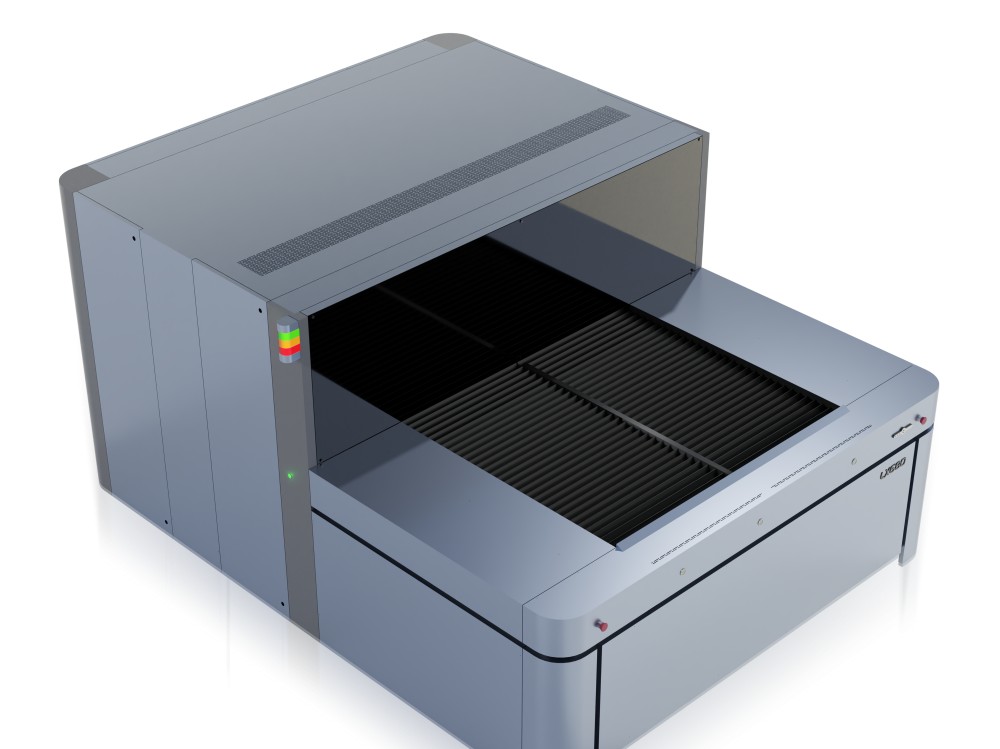

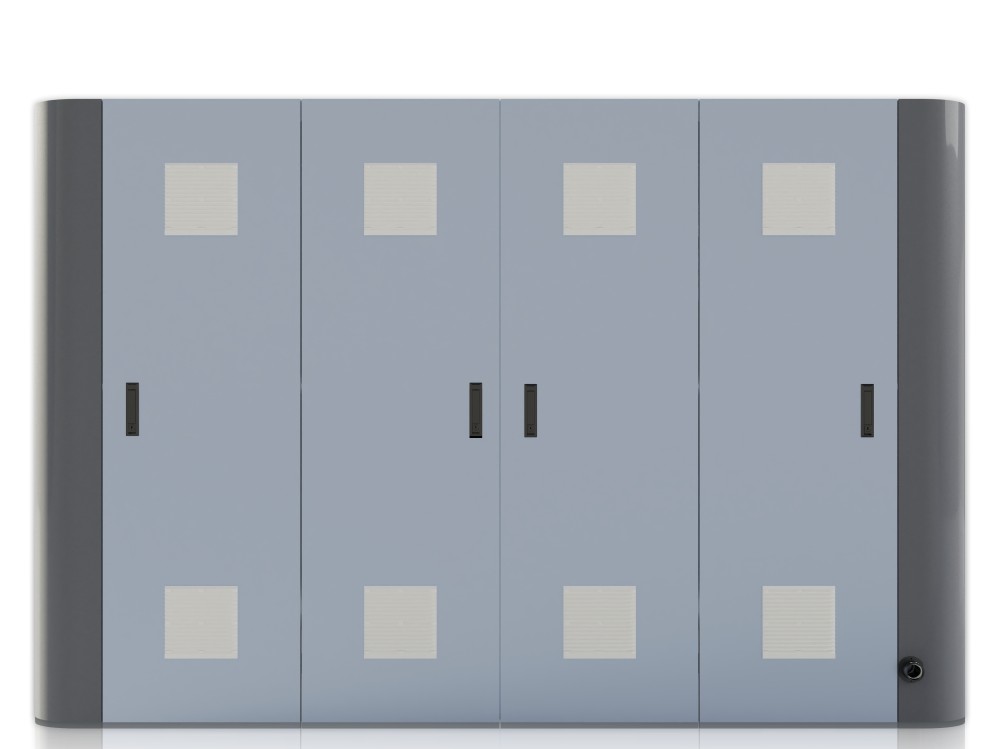

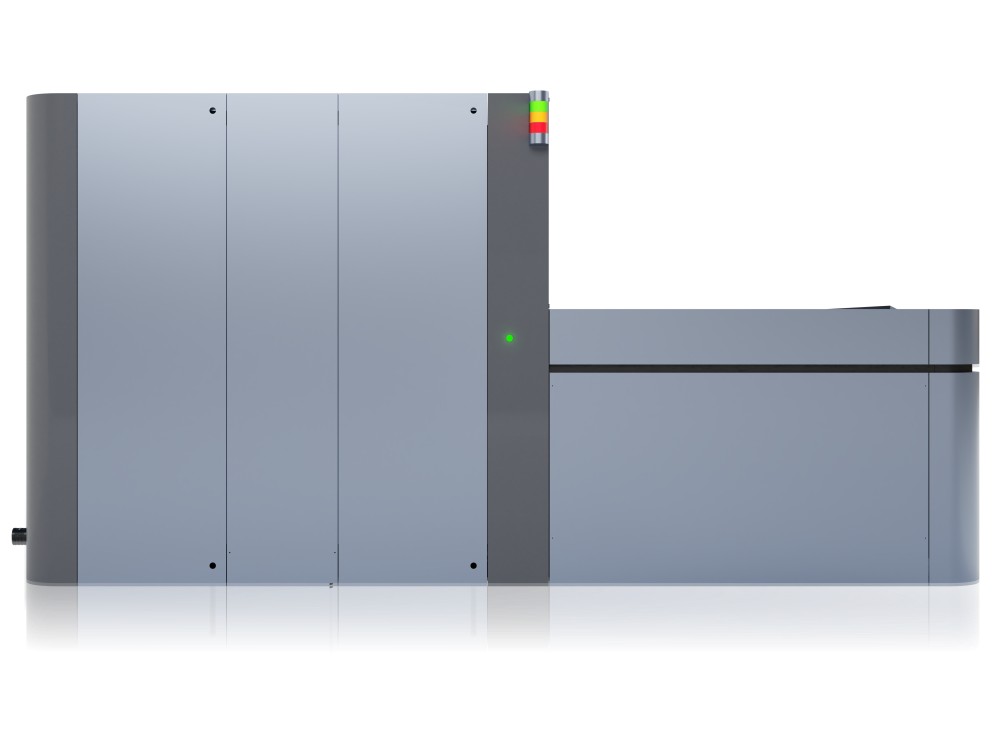

The LX680 is a legend printer suitable for industrial production, equipped with an independently developed printing control system. It adopts a dual-platform interactive printing method, incorporating a user-friendly design philosophy and relying on industrial production needs to introduce a new PCB character printing mode.
Product features
Specifications

Stable Performance


Utilizing high-quality linear motors and an industrial-grade PLC centralized control system, the machine is stably controlled, resulting in higher printing accuracy and more stable performance.

2

5


Intelligent printhead Maintenance


Automated printhead cleaning and maintenance design, automatically completing printhead maintenance and cleaning functions. The structure is compact, and the non-contact printhead cleaning does not damage the printhead, leaving no ink residue at the bottom of the printhead.

Precision Alignment


CCD automatic alignment, with a high-precision camera combined with independently developed alignment software, enables accurate image alignment.

1

Minimum printing board surface600mm x 470mm Four-sided fixture clamping
Maximum printing board surface1250mmx1250mm
Ink curing methodLED light curing, instant drying with LED printing
Minimum/Maximum board thickness0.1mm-8mm
Maximum board thickness (without fixtures)25mm
Number of printheads4 printheads,2-4(Optional)
Maximum printing resolution1440dpix 1440dpi
Minimum line width3min(75um) (Based on good solder mask tension)
Minimum text size500μmx400μm(Based on good solder mask tension)
Registration accuracy±35μm
Depth of field of curved plates0.5mm
Registration methodCCD automatic alignment, 3or4 points (optional)
Printing modeDraft / Standard / Fine (A-A / A-B)
Ink drop size13PL
Printing file formatGerber Files (*.gbo)
Ink typeUV photosensitive ink
Machine size3545mm(L) X 2780mm(W) X 1800mm(H)
Machine weight6500kg
Production capacityMinimum size
600mm x 470mm
Maximum size of a single platformMaximum size
680mmx1250mm1250mmx1250mm
Standard mode (2pass)
Fine mode (3pass)
Ultra-fine mode (4pass)
100 sides/h
80 sides/h
60 sides/h
70 sides/h
50 sides/h
30 sides/h
60 sides/h
40 sides/h
20 sides/h
Working environmentTemperature 20℃-30C, Humidity40%-70%
Air pressure parameters6-8 atmospheres
Power supplyPower supply: AC380, 50HZ, 25A, power supply
voltage fluctuation range: ±7%
Maximum power14KW


Applications covering the entire industry

Indoor and outdoor light boxes, exhibition displays, car window decals, backlit signs, and commercial output, etc.
