Venus 33x Industrial Hybrid UV Printer
Venus 33x is a ultra-high-end UV hybrid printer independently developed by JHF, which has the ability to print on both sheets and rolls of material using UV printing technology, with a printing width of 3.2 meters. The printer can simultaneously print on two rolls of 1.6 - meter, which can significantly improve production efficiency. The Venus 33x is equipped with an automatic media edge-finding function, which can accurately read the edge of single or multiple rolls of media and perform intelligent layout, making the printing process more efficient. Equipped with an intelligent sheet loading and unloading system, it can simultaneously print 6 sheets of material, enabling mutiple functions and saving industrial costs. The ink curing system adopts German-imported Honle mercury lamp, which is highly efficient, energy-saving, noise -reducing, and can improve curing efficiency. The Venus 33x ultra high-end UV hybrid printer will empower the industry with a more efficient production mode, helping customers unleash their production efficiency potential, and bring more commercial value.
Product features
Specifications

Flexible production mode

Capable of printing either a single 3.2-meter wide roll or simultaneously printing two rolls of different specifications within 1.6 meters.


Intelligent rigid sheets feeding system


During the sheets printing process, multiple rigid sheets can be printed simultaneously, achieving multi-purpose use with one machine and saving production costs.

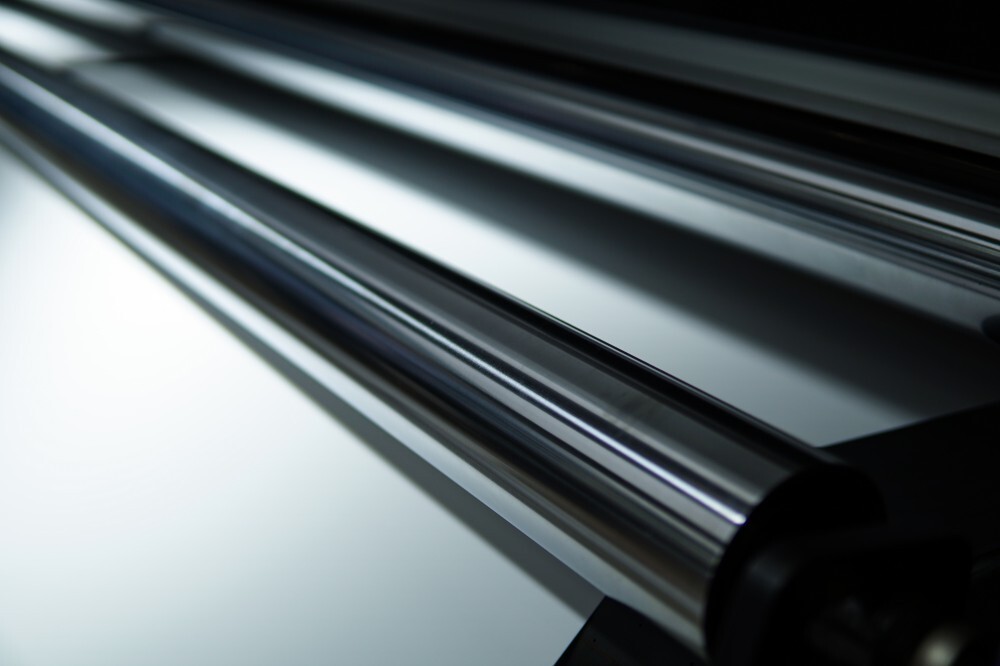

33x (1).jpg

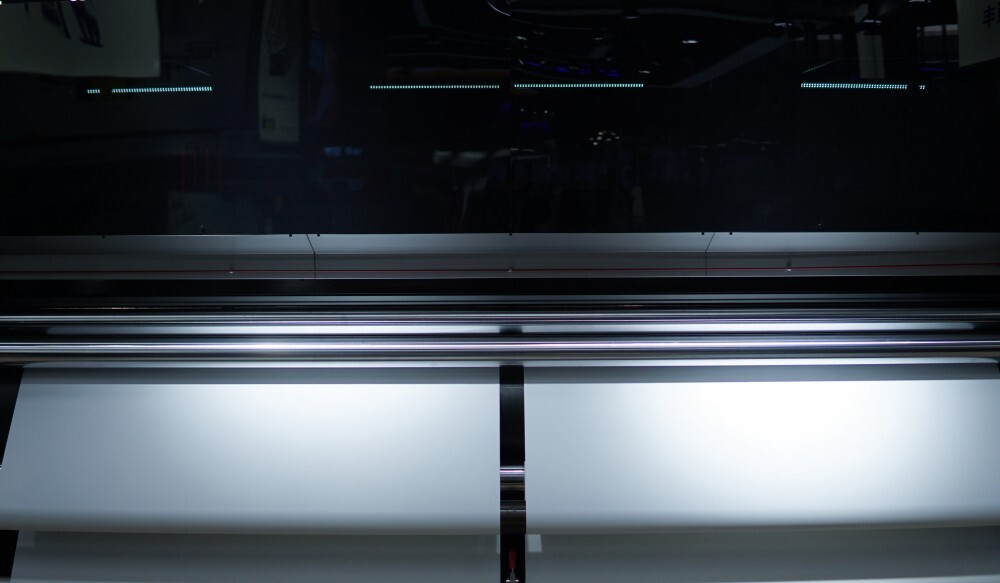

33x (2).jpg


Efficient ink curing system

Adopting German-made Honle mercury lamp, it is efficient, energy saving and noise-reducing, improving curing efficiency.


Ink constant temperature control system

The card stably controls the temperature to ensure consistent ink properties in different environments.

Automatic media edge detection & intelligent layout of multiple rolls


The Automatic Edge Detection System accurately detects the boundaries and width of multiple material rolls. The Intelligent  Typesetting function automatically optimizes the layout, supporting re-nesting of multiple tasks. It allows for adding new tasks while printing, ensuring seamless multi-task processing.


Electronic height measurement function


Automatically detects the thickness of the media, seamlessly switches printing mode according to the media, greatly improving the user experiffence.


Multi layer printing


Featuring 8 freely editable layers, the image, ink volume, and parameters for each layer can be independently adjusted. It offers a variety of application solutions, including white and color multi-layer printing.

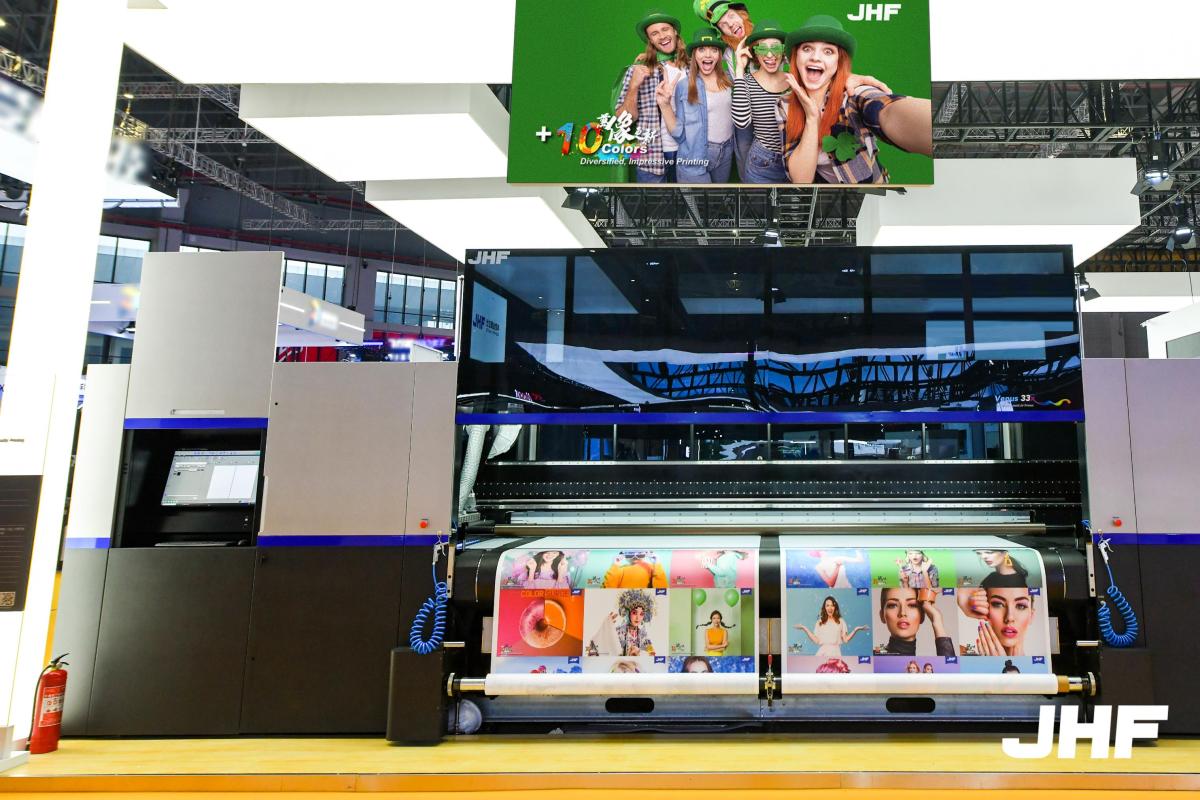

Hybrid Printer-venus 33x板卷混合机.jpg

Product ModelVenus33x
Maximum width3200mm
Printing mode

High-speed mode 300×1800dpi 330m²/h;

 Production mode 600×1200dpi 270m²/h;

Fine mode 600×1800dpi 195m²/h;

Ultra-fine mode 1200×1200dpi 155m²/h

Ink typeUV ink
Ink colorC, M, Y, K, Lc, Lm, W
Material thickness≤50mm
RIP softwarePrint Factory/Caldera (optional)
Control softwareJHF Printer V5.1
Environmental requirementsTemperature 18~28℃, humidity 30%~70%
air pressure parameters≥8kg/cm²
Machine power supplyThree-phase 380V/32KW
Machine sizeLength 8185mm × Width 2610mm × Height 2160mm
Machine weight9000kg


Applications covering the entire industry

Widely used in outdoor advertising, indoor advertising, light box advertising, posters, home decoration, exhibitions, decorative paintings, etc.
